Removing Transmission Temperature Sensor
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

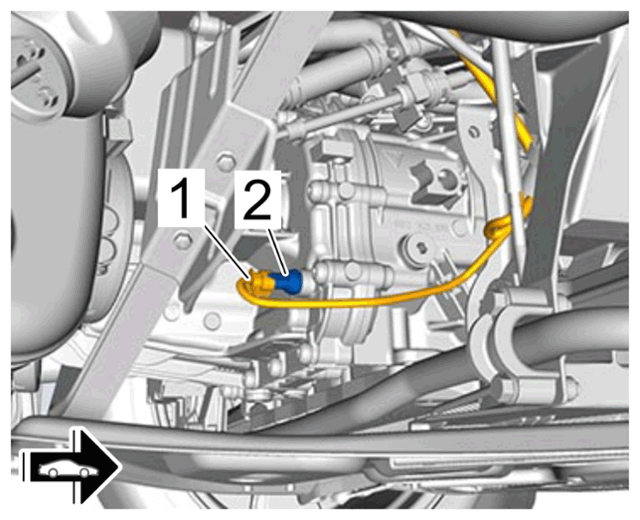

- Release electric plug connection -1-
on the transmission temperature sensor -2-
and disconnect it.

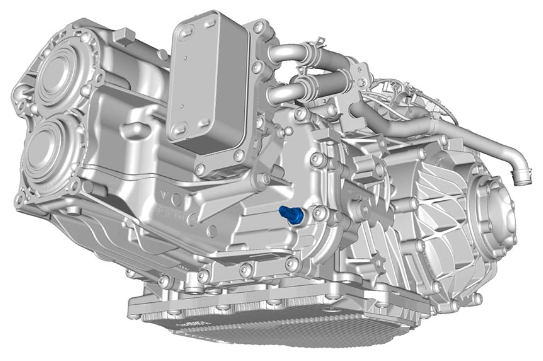

- Unscrew transmission temperature sensor -2-
from transmission housing and collect emerging ATF.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
