Removing Oil Cooler

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
- forward Avoid contact with hot fluid.
- forward Wear personal protective gear.

CAUTION: Hot components

Risk of burns
- forward Let hot components cool down.
- forward Wear personal protective gear.

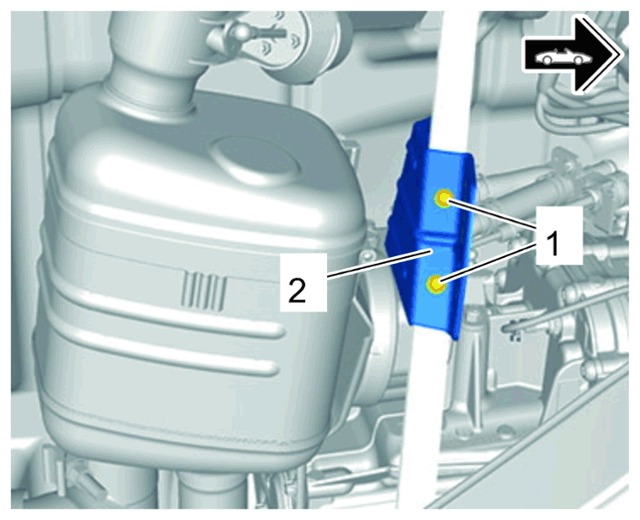

Screw off fastening nuts -1- .
Take off heat shield -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

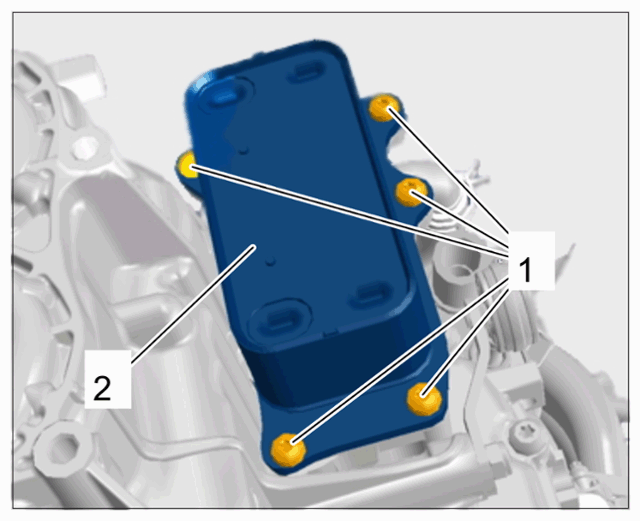

Unscrew fastening screws -1- .
Remove oil cooler -2- .
Collect escaping fluids.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
