Removing ATF Pan

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
- forward Let the fluid cool down.
- forward Wear personal protective gear.

Information

Even after you have drained the hydraulic oil, there will still be residual oil in the ATF pan.

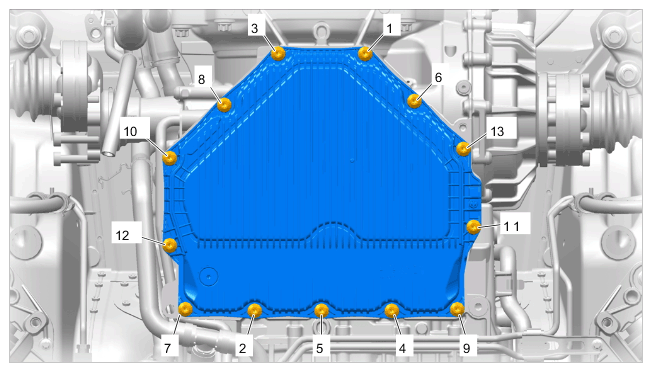

Loosen and unscrew all fastening screws on the ATF pan except -items 1 and 3- in reverse tightening sequence.
Carefully lever off the ATF pan on the opposite side to screws -1 and 3- and catch any oil that overflows.
Information

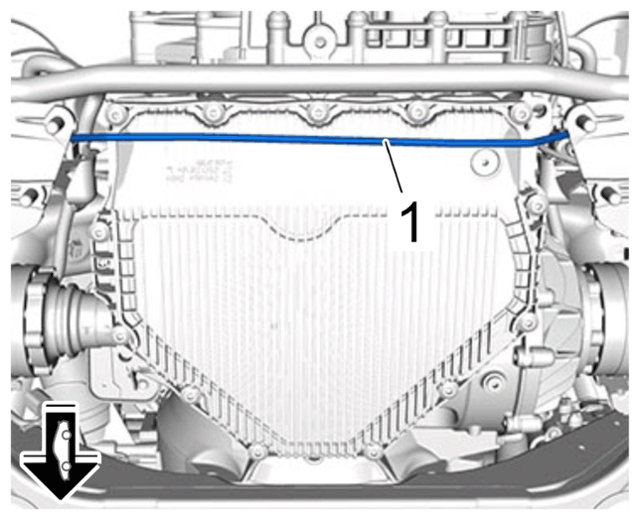

Check PADM line -1- and press it aside slightly if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -1 and 3- and carefully remove the ATF pan.
