Replacing Double Clutch Transmission

Information

• The illustrations shown here are not of GT4/Spyder models and may differ slightly.

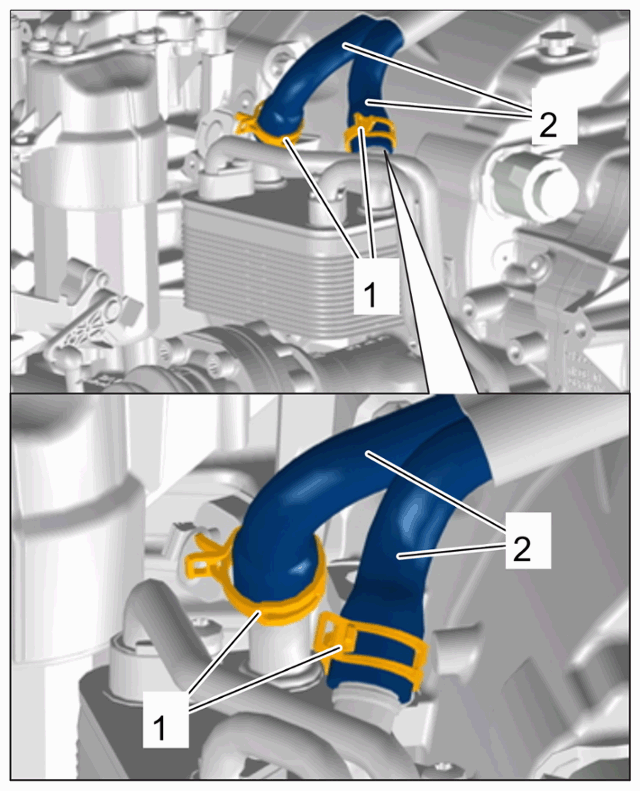

1. Loosen clamps -1-  and pull coolant hoses -2-  off the ATF cooler.

   Collect emerging coolant.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Loosen clamps -1-  and pull coolant hoses -2-  off the radiator.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Unscrew fastening screws -1-  on the holder -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

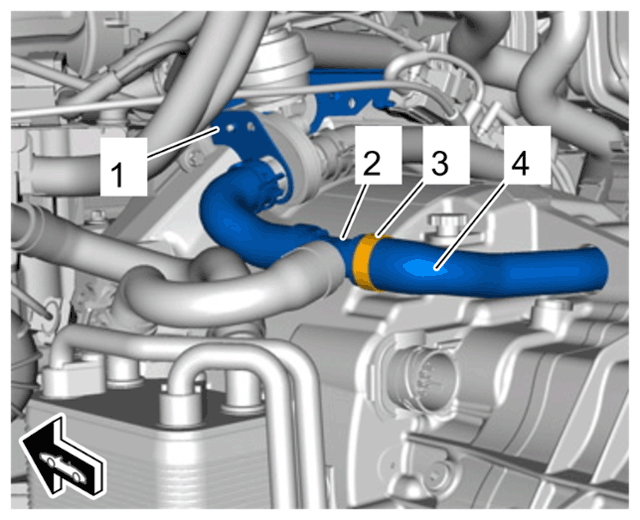

4. Cut and remove clip -3-  .
5. Pull coolant hose -4-  off the connecting piece -2-  .
6. Guide out coolant hose -4-  .
7. Remove holder -1-  together with valves and coolant hoses.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

8. Fit all add-on parts back on the new double clutch transmission.

   Replace clip.

   Fastening screw securing disc valve holder to transmission > Tightening torque 13 Nm (9.6 ftlb.)  .
