Removing Double Clutch Transmission

WARNING: This page is about a different variant/trim than selected.

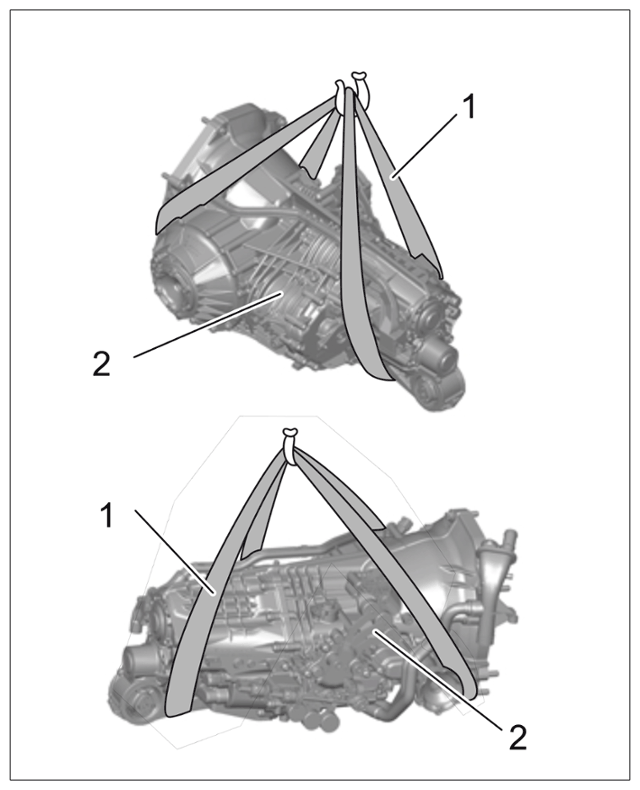

Secure Porsche Doppelkupplung (PDK) -2- using > VAS 501 015 - round sling-1- .
1. 1.1 Get workshop crane ready.
2. 1.2 Fit tensioning straps as shown.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTIFICATION

Mechanical overload of components
- Component will be damaged irreparably
  - forward Observe guidelines for assembly and disassembly
Remove Porsche Doppelkupplung (PDK).
Get another person to help!

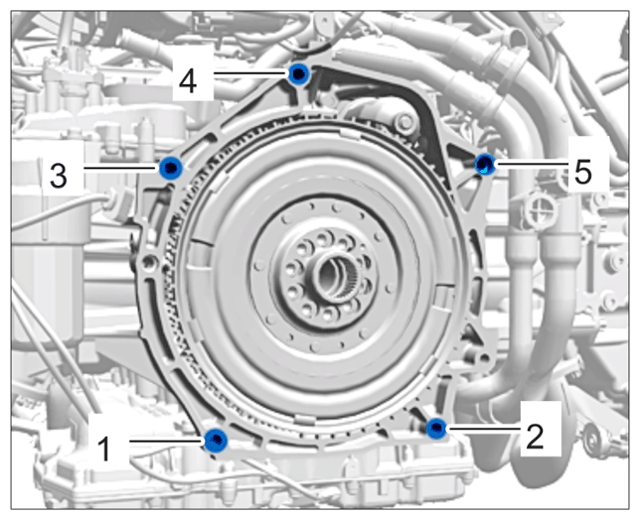

1. 2.1 Unscrew screws -1 and 2- first, then screws -3 to 5- .
2. 2.2 Remove double clutch transmission with the help of another person.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
