Removing And Installing Selector Knob

WARNING: This page is about a different variant/trim than selected.

Information

The ignition key must be in position 1 before the locking button can be pressed.

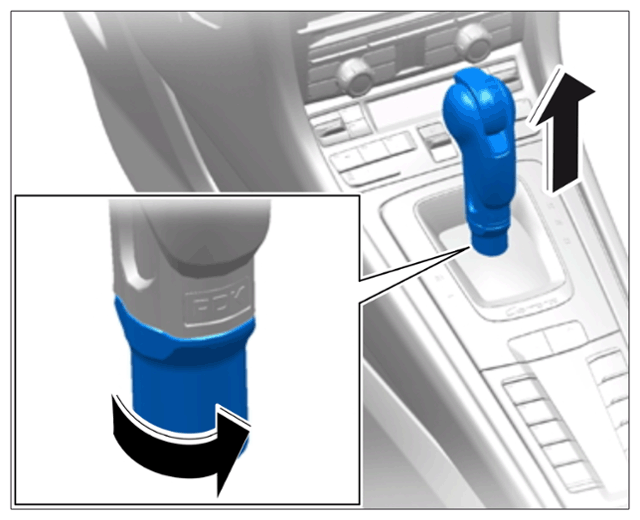

  1. Turn twist lock anti-clockwise and pull selector knob up and off.
    G14946640Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Installation is performed in reverse order.
