Installing Temperature Sensor
WARNING: This page is about a different variant/trim than selected.

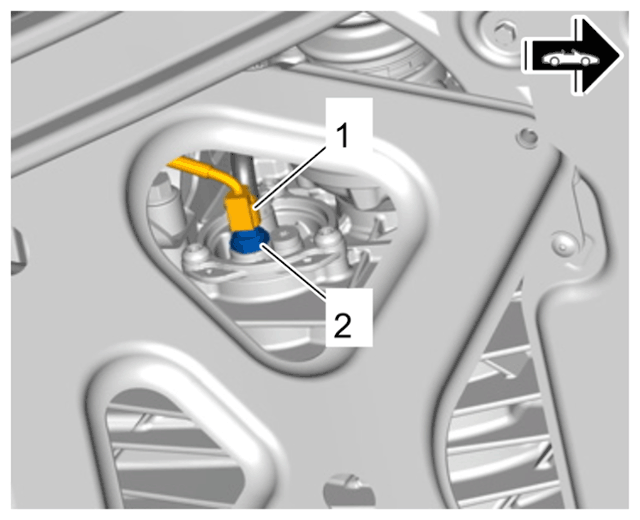

- Tighten temperature sensor -2-
to > Tightening torque 30 Nm (22.1 ftlb.) +/- 5 Nm (3.7 ftlb.)
on the transmission-oil pump flange.
- Remove aids used to protect the electric plug connection -1-
from soiling.
- Connect electric plug connection -1-
until the lock engages securely.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
