Removing Transmission Oil Cooler

WARNING: This page is about a different variant/trim than selected.

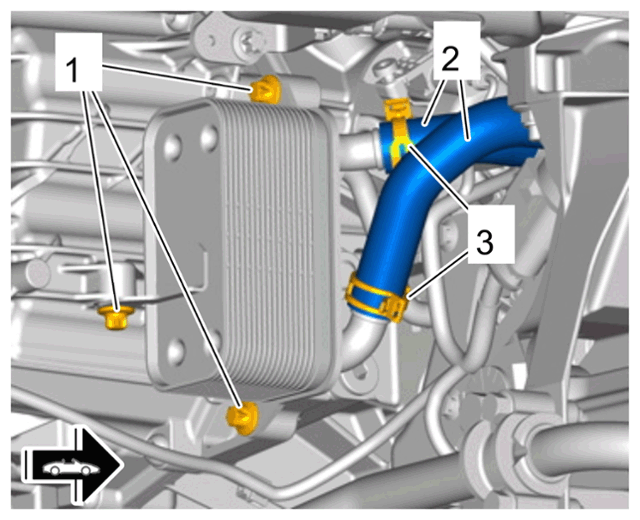

  1. Unscrew fastening screws -1-  .
  2. Fit a > 3094 - hose clamp  on each of the coolant hoses -2-  .
  3. Have suitable aids ready for collecting coolant.
  4. Loosen clamps -3-  .
  5. Pull off coolant hoses -2-  and collect emerging coolant.
    G14946622Courtesy of PORSCHE CARS NORTH AMERICA, INC.

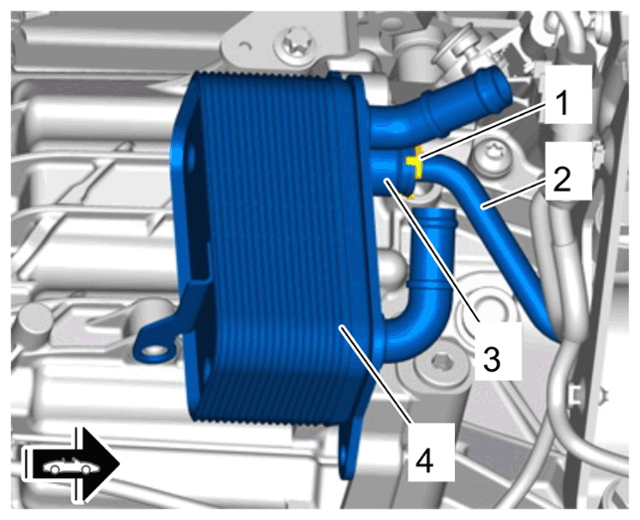

  6. Disengage locking lugs on lock -1-  for transmission oil pipe -2-  and pull them off the connection piece -3-  for the transmission oil cooler -4-  .
  7. Push lock -1-  on transmission oil pipe -2-  away from the transmission oil cooler -4-  .
  8. Remove transmission oil cooler -4-  from the transmission and carefully pull it off the transmission oil pipe -2-  .
G14946623Courtesy of PORSCHE CARS NORTH AMERICA, INC.
