Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Information

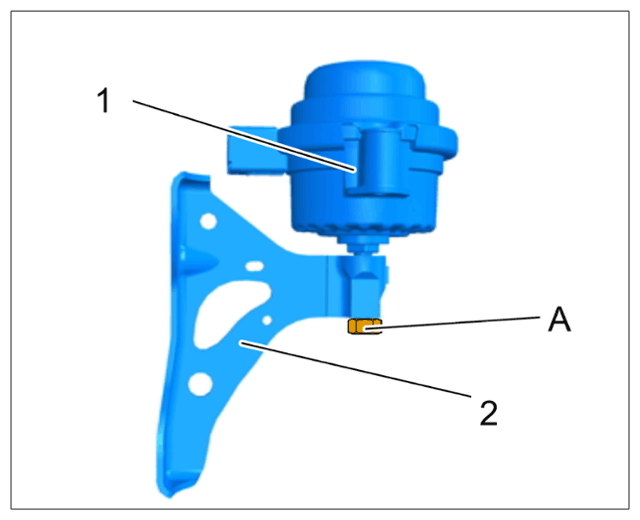

The fastening nut -A- must be tightened before lowering the transmission jack.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install transmission mount, but do not lower the transmission jack or install the support plate yet.
> 344019 REMOVING AND INSTALLING TRANSMISSION MOUNT
Tighten fastening nut securing transmission mount to gear support. > Tightening torque 85 Nm (62.7 ftlb.)
Lower the transmission jack and install support plate.
> 421419 REMOVING AND INSTALLING SUPPORT PLATE
