Preliminary Work
WARNING: This page is about a different variant/trim than selected.

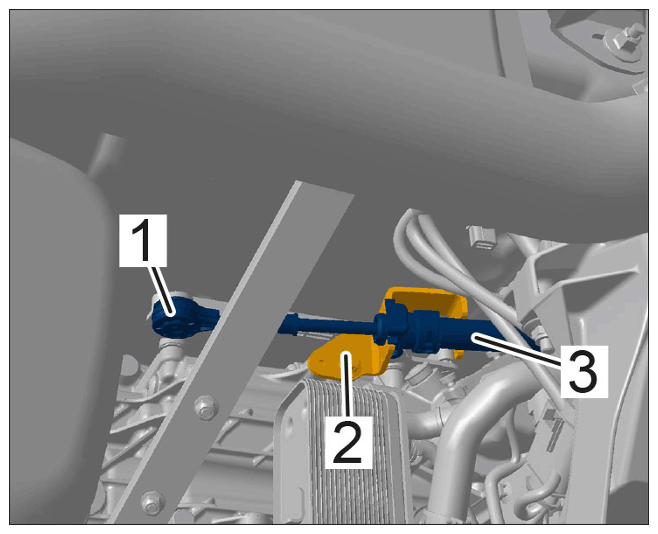

- Disconnect shift and selector cables -3-
on manual transmission at the right.
- 1.1 Disconnect ball joint -1-
from exterior shift mechanism using > VAS 6933 - Disassembly tool.
- 1.2 Disconnect shift and selector cables -3-
from holder -2-
and set them aside.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
