Removing Shift And Selector Cables

Information

• Do not kink or roll up shift and selector cables.
• Only store shift and selector cables in elongated position; do not roll up.

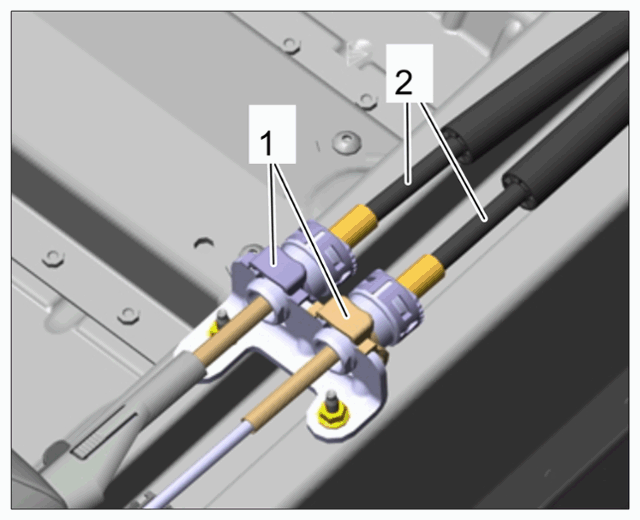

1. Release shift and selector cables -2-  at the support -1-  and pull them out.
2. Disconnect shift and selector cables -2-  at the gearshift bracket.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

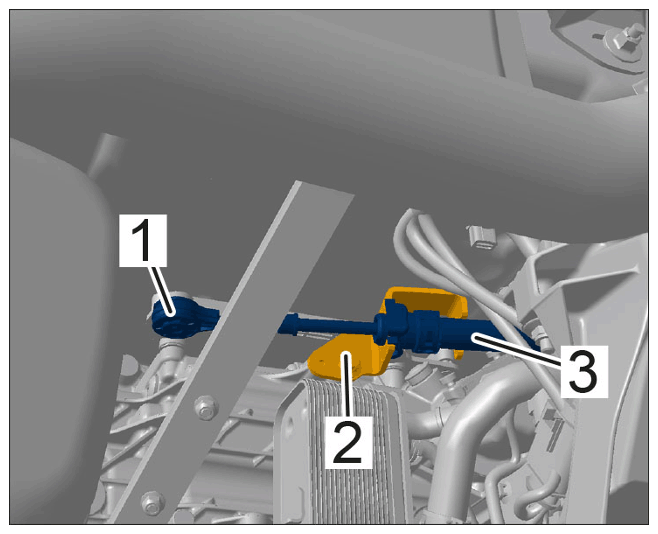

3. Disconnect shift and selector cables -3-  on manual transmission at the left.
   1. 3.1 Lever off ball joint -1-  on the exterior shift mechanism using > VAS 6933 - Disassembly tool.
   2. 3.2 Release shift and selector cables -3-  at the support -2-  at the left and pull them out.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

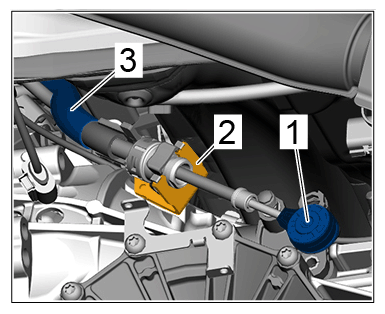

4. Disconnect shift and selector cables -3-  on manual transmission at the right.
   1. 4.1 Lever off ball joint -1-  on the exterior shift mechanism using > VAS 6933 - Disassembly tool.
   2. 4.2 Release shift and selector cables -3-  at the support -2-  at the right and pull them out.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

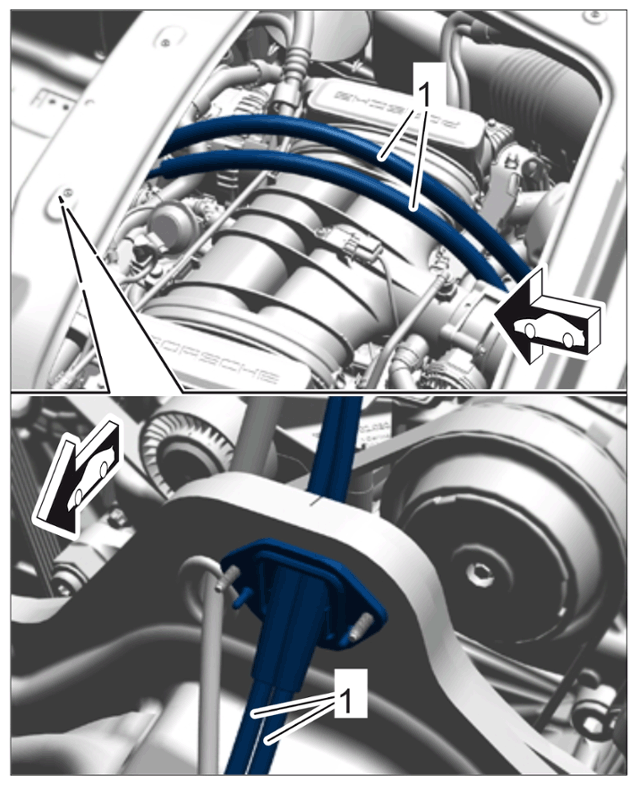

5. Remove shift and selector cables -1-  .
   1. 5.1 Disconnect shift and selector cables -1-  on the body.
   2. 5.2 Guide shift and selector cables -1-  through from the engine compartment into the passenger compartment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
