Adjusting The Shift And Selector Cables

WARNING: This page is about a different variant/trim than selected.
  1. Shift transmission to neutral.

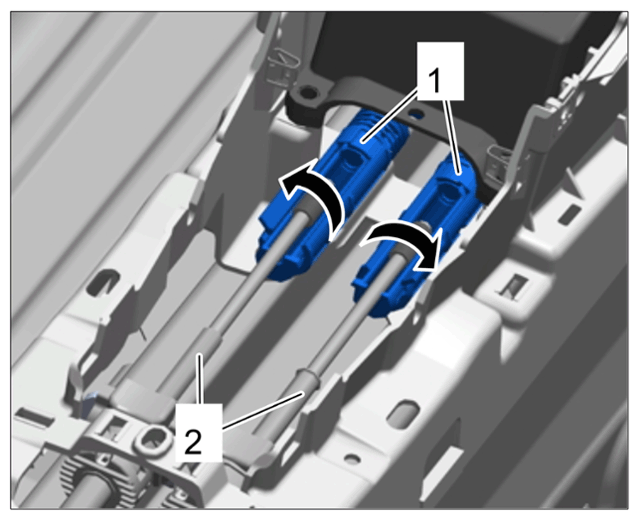

  2. Release bayonet locks -1-  (-arrows-  ).
    G14946544Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. >9846 - Locking bridge-1-  must be fitted on the gearshift bracket -2-  .
    G14946545Courtesy of PORSCHE CARS NORTH AMERICA, INC.

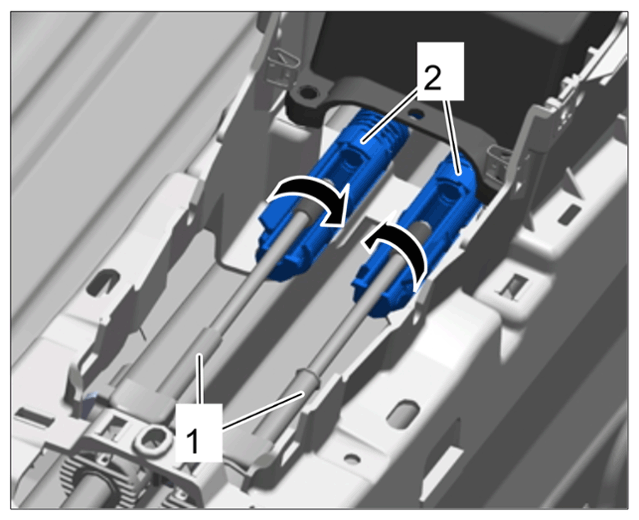

  4. Lock bayonet locks -2-  (-arrows-  ).
    G14946546Courtesy of PORSCHE CARS NORTH AMERICA, INC.

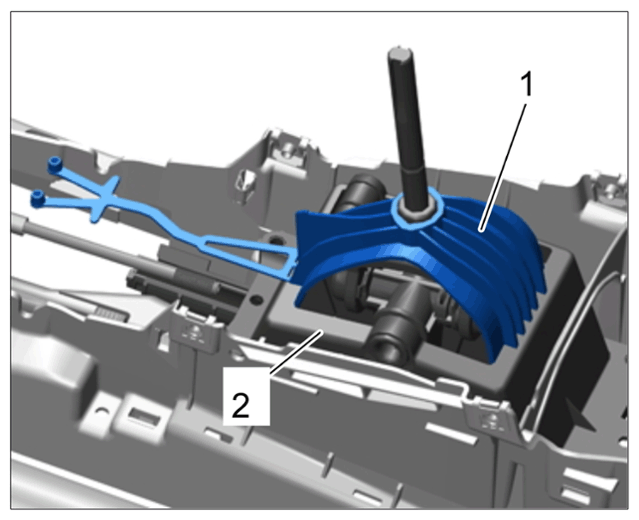

  5. >9846 - Locking bridge-1-  must now be unclipped and removed.
    G14946547Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Start the engine and check that all shift positions function correctly.
