Technical Values - Group 27 - Starter, Power Supply, Cruise Control: Battery
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance |

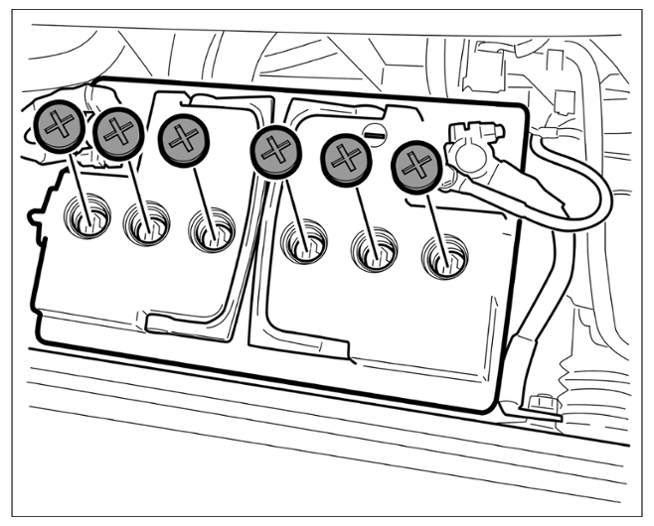

| Battery filler plug |
|
Tightening torque |
1.2 Nm (0.9 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| Location |
Description |
Type |
Basic value |
Tolerance |
| Retaining bar on cowl panel frame or battery console |
Collar nut, M8 |
Tightening torque |
23 Nm (17 ftlb.) |
|
| Terminal clamp to battery terminal |
M6 nut |
Tightening torque |
6 Nm (4.5 ftlb.) |
|
| Battery ground line to cowl panel frame |
Collar nut, M8 |
Tightening torque |
15 Nm (11 ftlb.) |
|
| Rail to battery console |
Hexagon-head bolt, M8 |
Tightening torque |
23 Nm (17 ftlb.) |
|
| Battery console to holder |
Hexagon-head bolt, M8 |
Tightening torque |
23 Nm (17 ftlb.) |
|
| Battery console holder to body |
Hexagon-head bolt, M8 |
Tightening torque |
23 Nm (17 ftlb.) |
|
