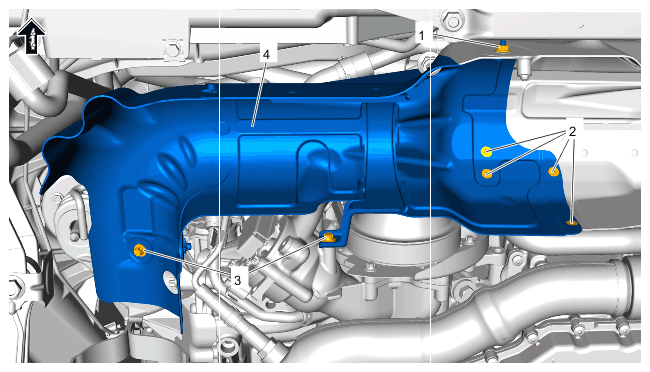

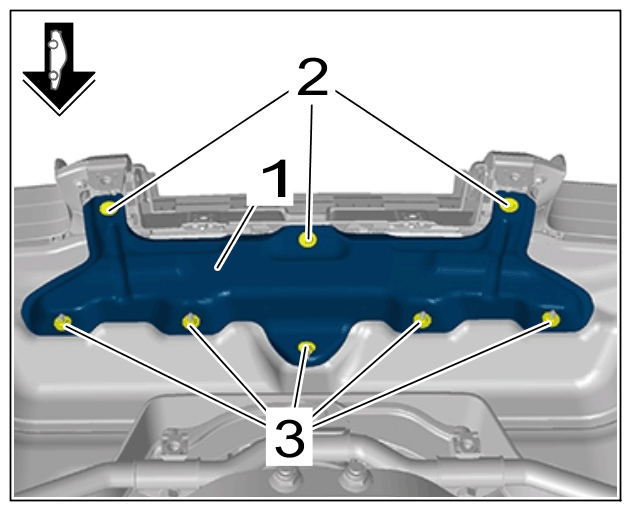

Installation overview of heat shield on catalytic converter:
- Collar nut, M6 > Tightening torque 8 Nm (6 ftlb.)
- Countersunk screw, M6 > Tightening torque 10 Nm (7.5 ftlb.)
- Screw, M6 > Tightening torque 10 Nm (7.5 ftlb.)
- Heat shield for catalytic converter
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Heat shield to body | Speed nut, hexagon | Tightening torque | 2.5 Nm (2 ftlb.) |
- 3 Nuts > Tightening torque 8 Nm (6 ftlb.)
