Oxygen Sensors
WARNING: This page is about a different variant/trim than selected.
> Tightening torque 50 Nm (37 ftlb.) +/- 8 Nm (6 ftlb.) > Tightening torque 50 Nm (37 ftlb.) +/- 8 Nm (6 ftlb.) > Tightening torque 10 Nm (7.5 ftlb.)

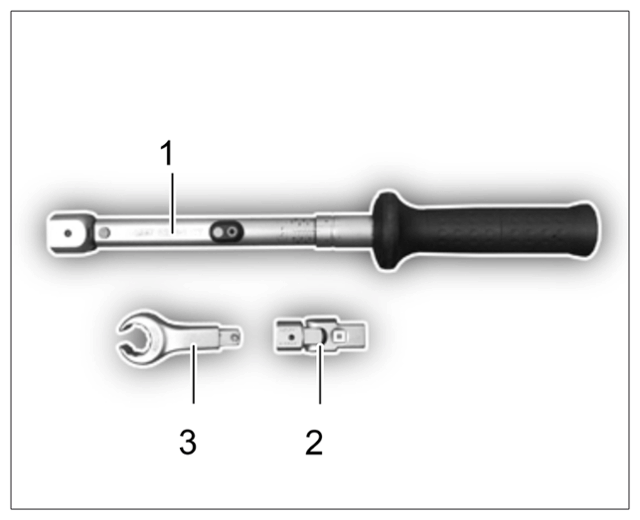

Tightening torque using recommended tool
- > V.A.G 1331A - Torque wrench, 6-50 Nm/4.5-37 ftlb. - suitable for 3/8-inch ratchet head
- >VAS 6947 - Ring Socket Insert, a/f 13
- >3337 - Ring wrench set for oxygen sensor , a/f 22 mm
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Oxygen sensor to catalytic converter | Grease thread with the prescribed lubricant during re-installation | Tightening torque using the prescribed tool | 46 Nm (34 ftlb.) |
