High-Pressure Pump

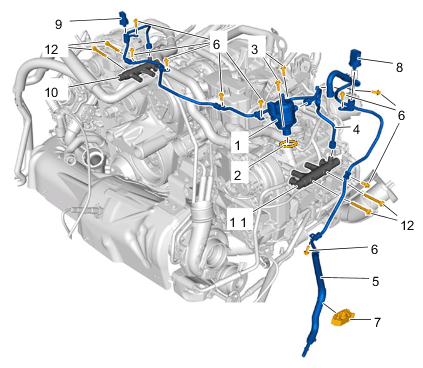

Overview of high-pressure pump, fuel lines

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. High-pressure pump
2. O-ring
3. High-pressure pump screw > Tightening torque 13 Nm (9.5 ftlb.)
4. High-pressure fuel connecting line > Tightening torque 25 Nm (19 ftlb.)
5. Low-pressure fuel line
6. Screw, M6 x 16 > Tightening torque 13 Nm (9.5 ftlb.)
7. Clip for fuel line and vent line
8. High-pressure sensor > Tightening torque 32.5 Nm (24 ftlb.) +/- 2.5 Nm (2 ftlb.)
9. Low-pressure sensor > Tightening torque 22 Nm (16 ftlb.) +/- 2 Nm (1.5 ftlb.)  Low-pressure sensor
10. Fuel collection pipe, bank 1-2
11. Fuel collection pipe, bank 3-4
12. Screw, M6 x 85 > Tightening torque 13 Nm (9.5 ftlb.)
