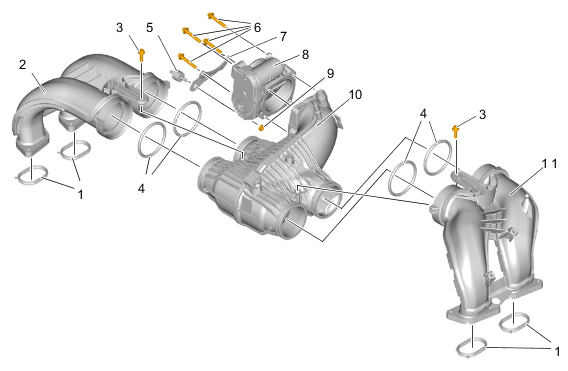

Assembly Overview - Intake-Air Distributor
WARNING: This page is about a different variant/trim than selected.
- Intake distributor seal
- Intake-air distributor, bank 1-2> Tightening torque 13 Nm (9.5 ftlb.)
- External Torx screw (M6 x 25) for intake-air distributor > Tightening torque 13 Nm (9.5 ftlb.)
- Seal for intake-air distributor, centre
- Damper element
- External Torx screw, M6 x 40 for throttle housing> Tightening torque 13 Nm (9.5 ftlb.)
- Throttle housing holder
- Throttle housing
- Collar nut, M6, on holder> Tightening torque 10 Nm (7.5 ftlb.)
- Centre intake-air distributor
- Intake-air distributor, bank 3-4 > Tightening torque 13 Nm (9.5 ftlb.)
