Assembly Overview - VTG Turbocharger
WARNING: This page is about a different variant/trim than selected.

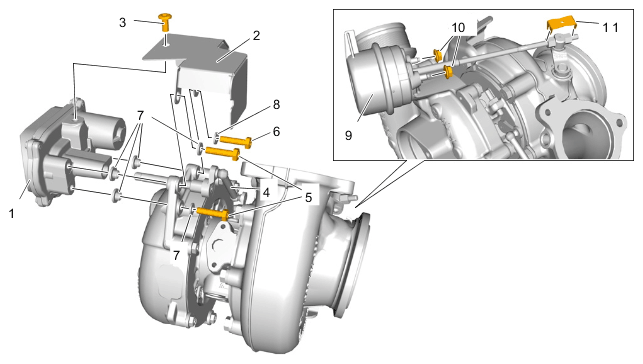

- Electronic adjuster
- Heat protection
- Screw, M6 > Tightening torque 4 Nm (3 ftlb.) +/- 1 Nm (0.5 ftlb.)
- Linkage with ball socket
- Screws securing electronic adjuster to turbocharger > Tightening torque 7 Nm (5 ftlb.) +/- 1 Nm (0.5 ftlb.)
- Sleeves
- Washer
- Vacuum unit
- Nuts on vacuum unit > Tightening torque 7.5 Nm (5.5 ftlb.) +/- 0.5 Nm (0.25 ftlb.)
- Safety clip
