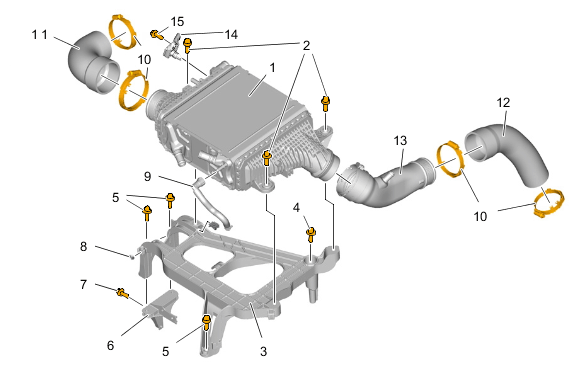

Assembly Overview - Charge Air Cooling System
WARNING: This page is about a different variant/trim than selected.
- Charge air cooler
- Screws > Tightening torque 10 Nm
- Holder
- Screw > Tightening torque 10 Nm
- Screw > Tightening torque 10 Nm
- Holder
- Screw > Tightening torque 10 Nm
- M6 nut > Tightening torque 6 Nm
- Hose
- Screw-type clamp > Tightening torque 5.5 Nm + 0.5 Nm
- Upper moulded hose (charge air cooler/throttle valve)
- Lower moulded hose (pressure pipe/turbocharger)
- Pressure pipe
- Boost pressure sensor
- M5 x 16 screw> Tightening torque 3 Nm
