Removing TENSIONING Roller

WARNING: This page is about a different variant/trim than selected.

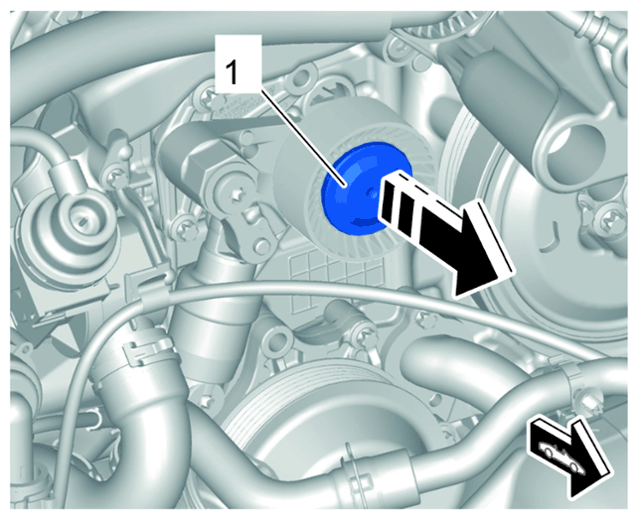

Remove cap -1- using a suitable tool -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cap on tensioning roller

Information

The following is ideal as a tool:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

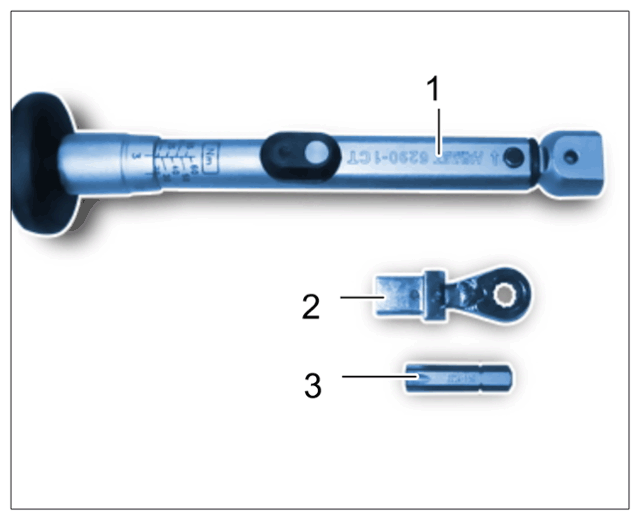

Tools for tensioning roller
1. > V.A.G 1331A - Torque wrench, 6-50 Nm/4.5-37 ftlb .
2. >9792 - Insert part for torque wrench
3. Internal Torx bit T50 with width across flats (a/f) 8 mm

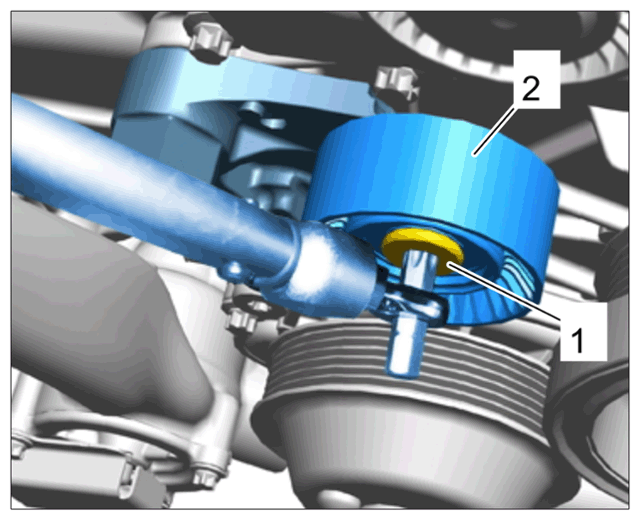

Unscrew fastening screw -1- using a suitable tool and remove tensioning roller -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for tensioning roller
