Removing Deflection Roller
WARNING: This page is about a different variant/trim than selected.

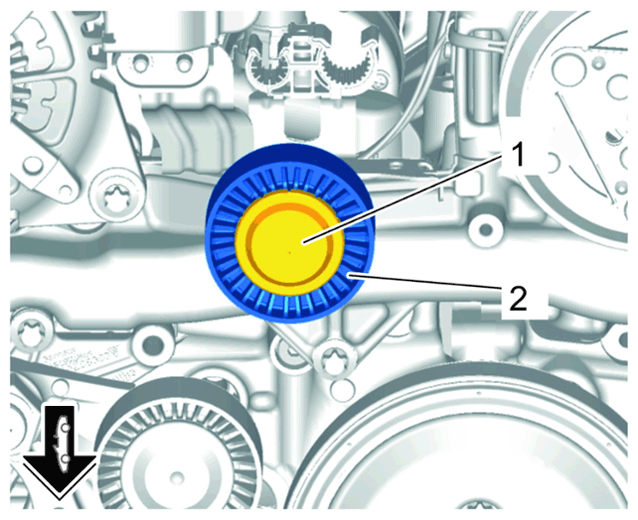

- Unclip cover -1-
using a suitable tool.
- Unscrew fastening screw underneath and remove deflection roller -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Deflection roller
