Removing Vibration Damper

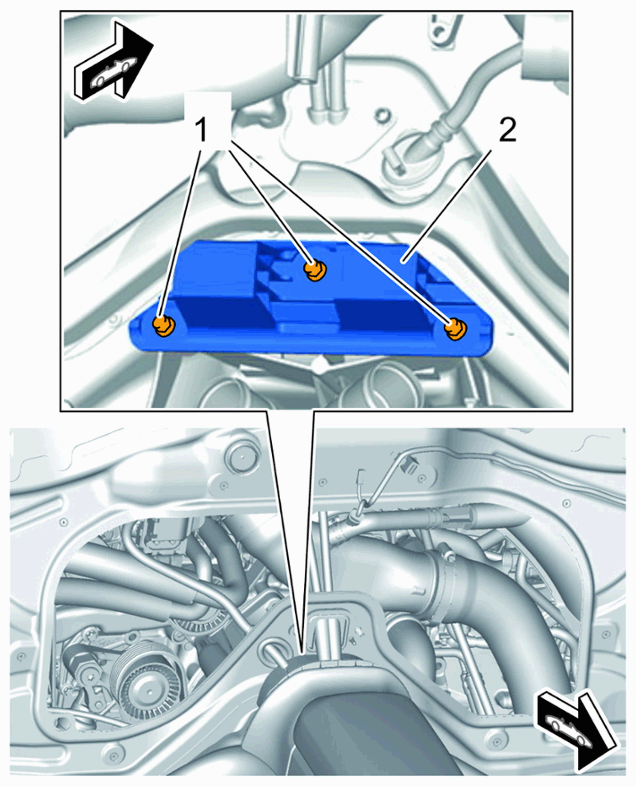

1. 1.1 Unscrew fastening screws -1-  .
2. 1.2 Remove crash reinforcement from the body -2-  by pulling it upwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crash reinforcement on body

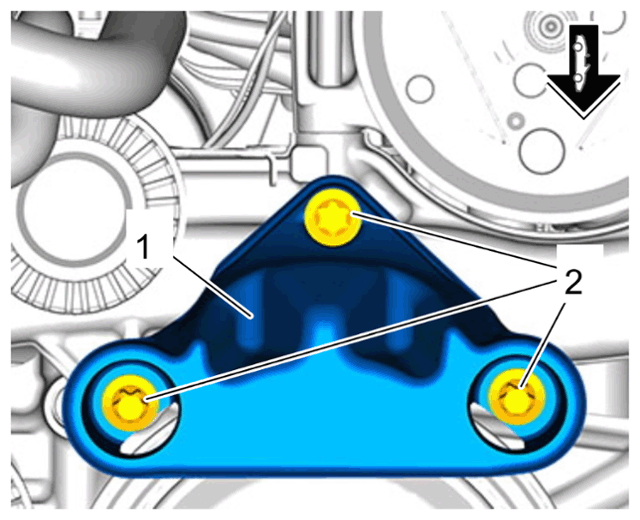

1. 2.1 Unscrew fastening screws -2-  .
2. 2.2 Remove crash reinforcement from the engine -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crash reinforcement

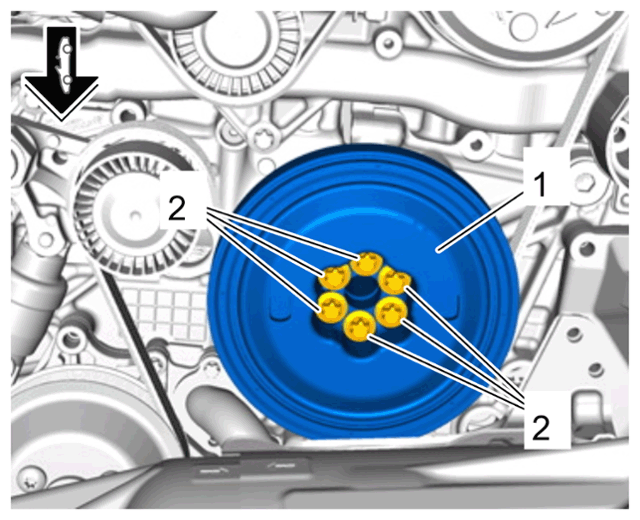

1. 3.1 Hold vibration damper using > T10172A - Counter-hold tool  and loosen fastening screws -2-  .
2. 3.2 Unscrew fastening screws -2-  .
3. 3.3 Remove vibration damper -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vibration damper, 2.5 l
