Installing Vibration Damper

> Initial tightening 3 Nm (2 ftlb.)  > Initial tightening 8 Nm (6 ftlb.)  > Torque angle 90° +/- 5°

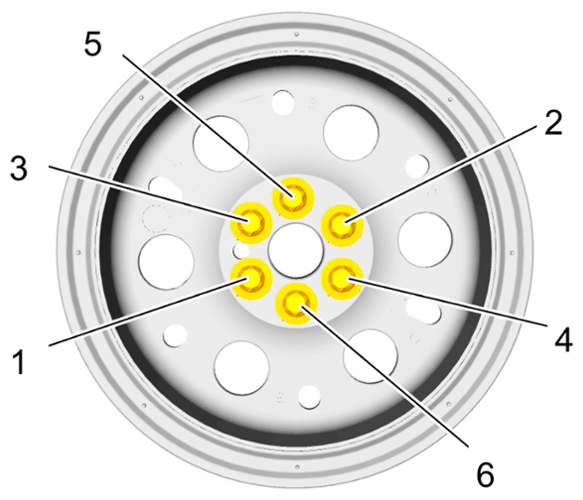

Fig 1: Vibration Damper Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for vibration damper (view of 2.0 l version)

1-6  Screw, M8 x 1 x 25 - observe tightening sequence.

Fastening screws securing crash reinforcement to body > Tightening torque 23 Nm (17 ftlb.)  .

Fastening screws securing engine support to engine, M6 x 40 > Tightening torque 13 Nm (9.5 ftlb.)  .

Fastening screws securing engine support to engine, M8 x 75 > Tightening torque 33 Nm (24 ftlb.)  .
