Replacing TENSIONER
WARNING: This page is about a different variant/trim than selected.
Information
- When fitting the tensioner, make sure that the lettering can be read from outside.
- The bellows must be facing upwards (see inscription).
- Re-fit tensioner -2-
on carrier for tension roller.

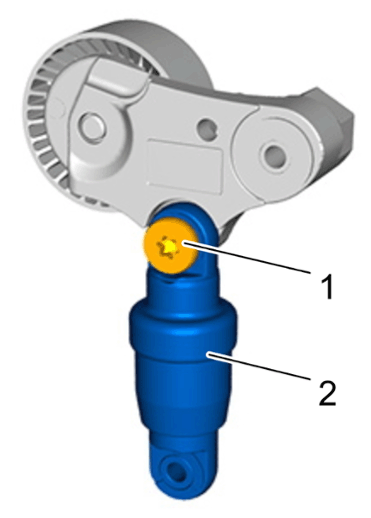

- 1.1 Unscrew and remove fastening screw -1-
.
- 1.2 Fit new tensioner -2-
in accordance with the installation position of the old tensioner -2-
and secure with a fastening screw -1-
. > Tightening torque 23 Nm (17 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Tensioner
