Installing Belt TENSIONER

WARNING: This page is about a different variant/trim than selected.

Position the belt tensioner and secure it with the upper fastening screw -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt tensioner screw, upper (shown on the 911)
Screw in and tighten lower fastening screw -arrow- . > Tightening torque 27 Nm (20 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

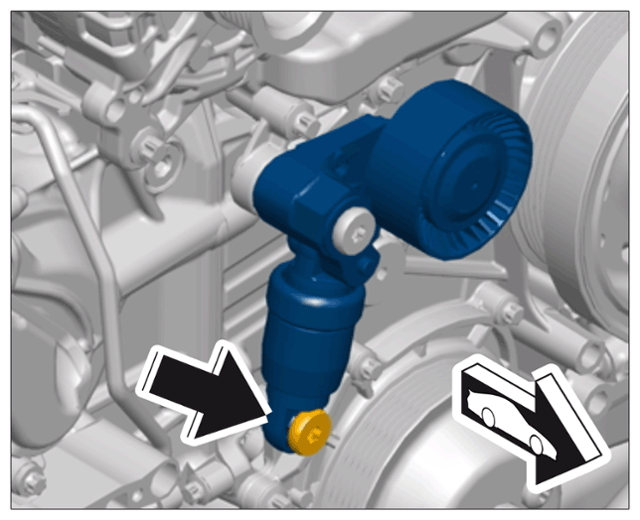

Belt tensioner screw, lower (shown on the 911)
Tighten upper fastening screw. > Tightening torque 27 Nm (20 ftlb.)
