Removing Flywheel

NOTIFICATION

Removing and installing flywheel

• Leaks
• Risk of damage to the flywheel and adjacent components
  • → Be very careful during removal and installation.
  • → See Technical Information releases about the flywheel.

Information

A commercially available socket, for example, is ideal as a spacer.

1. > 9538/1 - Toothed segment-1-  must be fitted on the engine flange as a counter-hold tool.

   Information

   A commercially available socket, for example, is ideal as a spacer.

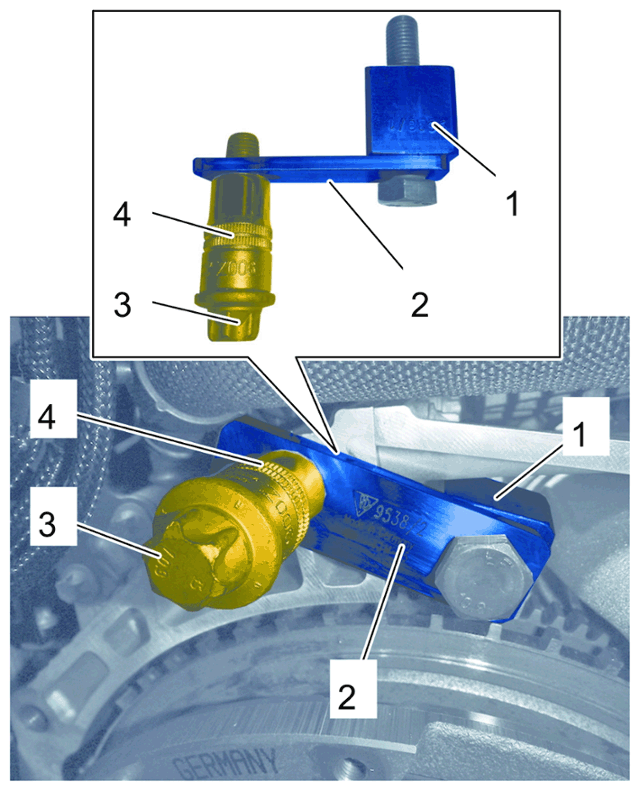

   1. 1.1 > 9538/1 - Toothed segment-1-  must be fitted on the engine flange using original flange screw -3-  , > 9538/2 - holder-2-  and spacer -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brace

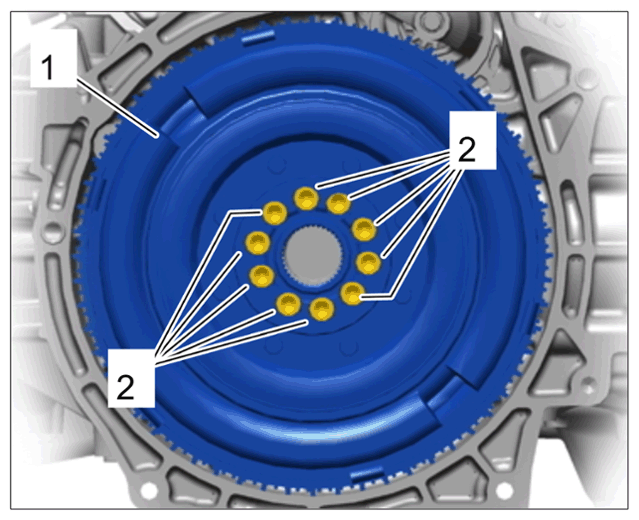

2. Loosen fastening screws -2-  on the flywheel -1-  evenly and in diagonally opposite sequence.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Threaded joint for flywheel

3. Remove counter-hold tool.
4. Unscrew fastening screws and remove flywheel from the crankshaft.
