Assembling Crankshaft
WARNING: This page is about a different variant/trim than selected.
NOTIFICATION
Dirt and contamination
- Risk of damage to units or components
- → Protect components from dirt and contamination.
- → Clean or replace dirty components.
- Assemble new connecting-rod bearing shells on the crankshaft according to the marking.

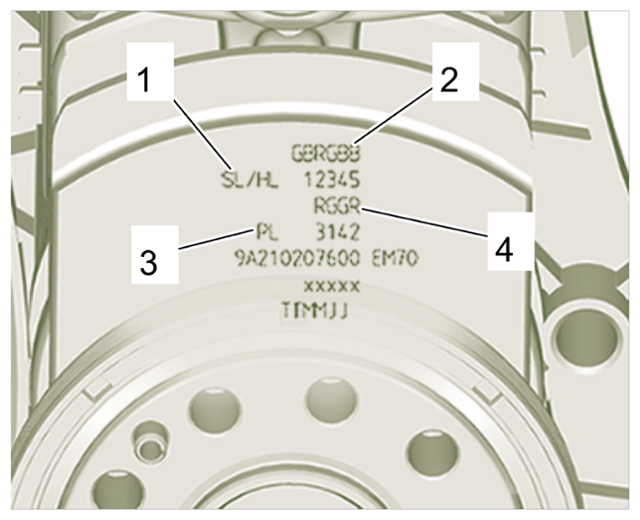

Marking for bearing shell allocation on the crankshaft
- Position of support and main bearing shells on crankshaft (support bearings not numbered!)
- Series of letters on support and main bearing shells
- Position of connecting-rod bearing shells
- Series of letters on connecting-rod bearing shells
- SL Supporting mount
- HL Main bearing
- PL Connecting-rod bearing
- R Red bearing shell ("thin")
- W Yellow bearing shell ("medium")
- RHD vehicle Blue bearing shell ("thick")
- Fit connecting rods.

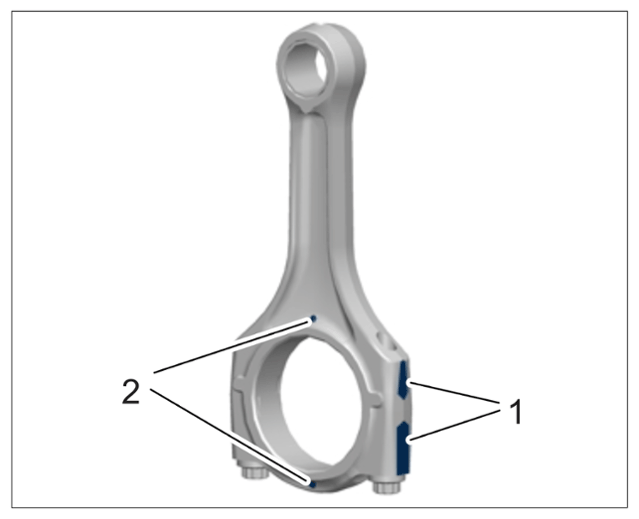

- 2.1 The data matrix code marking -1- must be facing the outlet side for all connecting rods.
- 2.2 Marking points -2- must be on one side.
- 2.3 Screw in new connecting rod bolts and tighten according to specifications.
Step 1: > Initial tightening 5 Nm (3.5 ftlb.)
Step 2: > Subsequent tightening torque 16 Nm (12 ftlb.)
Step 3: > Tightening torque 20 Nm (15 ftlb.)
Step 4: > Tightening angle 80°
Step 5: > Loosen screws - 360°
Step 6: > Initial tightening 5 Nm (3.5 ftlb.)
Step 7: > Subsequent tightening torque 16 Nm (12 ftlb.)
Step 8: > Tightening torque 20 Nm (15 ftlb.)
Step 9: > Final tightening angle 80° +/- 3°
Connecting rod markings
- Assemble and fit new bearing shells for both crankcase halves on the crankshaft and crankcase half 1-2 according to the markings.
- 3.1 Coat bearing shells with new engine oil.
- Insert crankshaft into crankcase half.
