Removing Pistons - Cylinders 3-4

Information

• The parting surface between the connecting rod and connecting rod cap is broken during the manufacturing process.
• Assign connecting rod cap to the relevant connecting rod immediately after removal.
• Also check the four-digit matching number.
• Replace connecting rod bolts.
• Replace connecting rod bearings.

Information

• Some of the illustrations show the 6-cylinder engine variant as an example.
• But this does not affect the procedure or the steps to be carried out.

1. Mark pistons 3 and 4 in installation position.
2. Remove crankcase half 1-2.

   > 1001Z1 DISASSEMBLING ENGINE .

   1. 2.1 Unscrew upper fastening screw on the engine support.
3. Secure the crankshaft to the main bearing in the middle using special tool > 9779 - holding bridge-1-  .
   1. 3.1 Screw in and tighten two fastening screws -2-  hand-tight.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

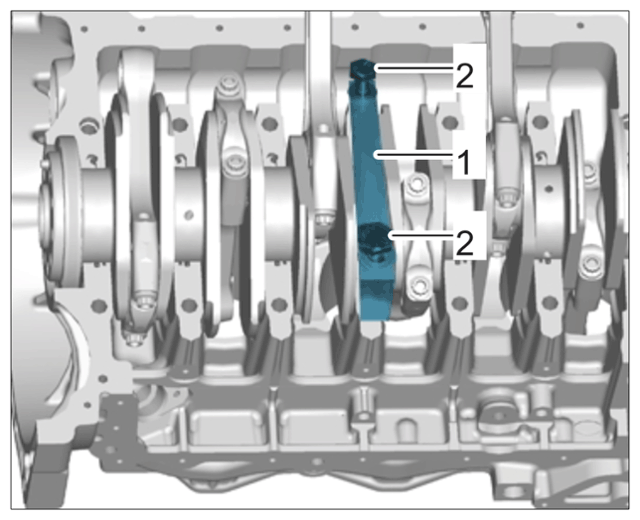

   Holding bridge 9779 for crankshaft (view of 6-cylinder engine)

4. Screw in three screws -2-  for the vibration damper at the crankshaft flange.
   1. 4.1 Turn the crankshaft using special tool > 9773 - turning device-1-  so that the connecting rod bolts can be reached.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

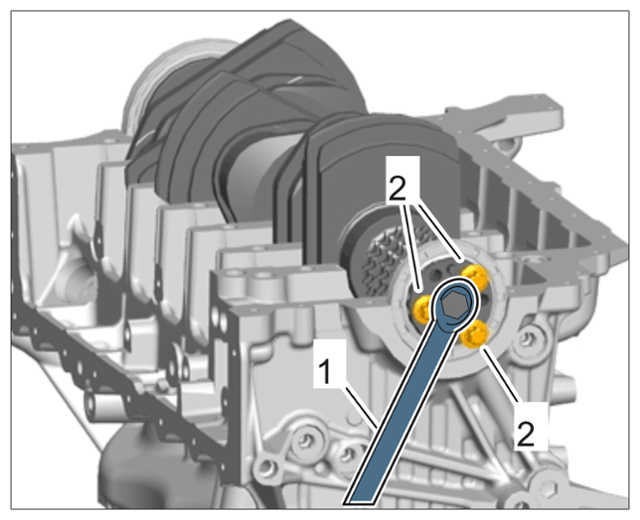

   Turning the crankshaft (without vibration damper)

5. Remove pistons with connecting rods on cylinder bank 3-4.
   1. 5.1 Loosen and unscrew two screws -3-  on each connecting rod cap -1 and 2-  .
   2. 5.2 Replace connecting rod bolts!

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

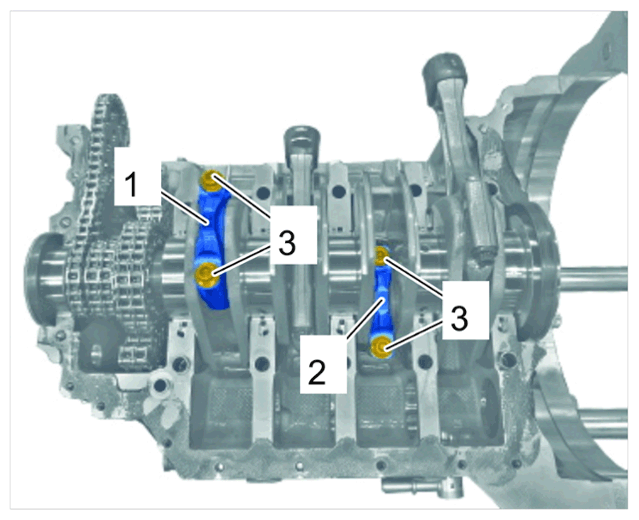

   Connecting rod caps on cylinders 3 and 4

6. Remove pistons 3 and 4 with connecting rods.
   1. 6.1 On > 9783 - assembly aid-2-  , unscrew the grip handle and screw the bar into a threaded bore on the connecting rod -1-  . Press piston and connecting rod down out of the cylinder bore.
   2. 6.2 Repeat this step for piston 4.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

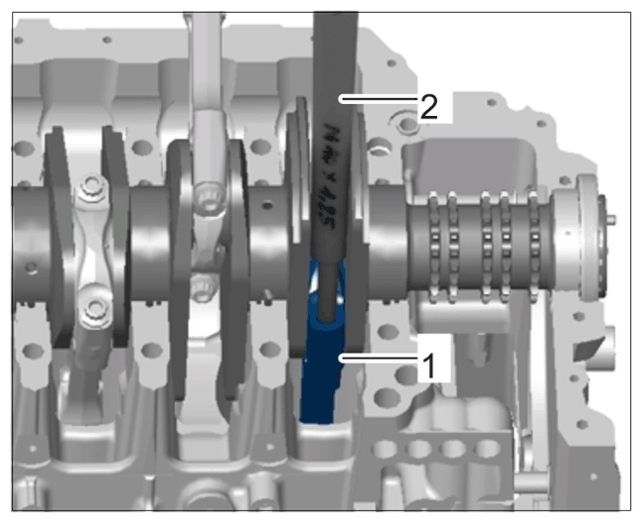

   Pressing out pistons and connecting rods

7. Remove connecting rods for cylinders 1-2 on the crankshaft.
   1. 7.1 Unscrew connecting rod bolts and remove connecting rod cap and connecting rod.
   2. 7.2 Replace screws.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

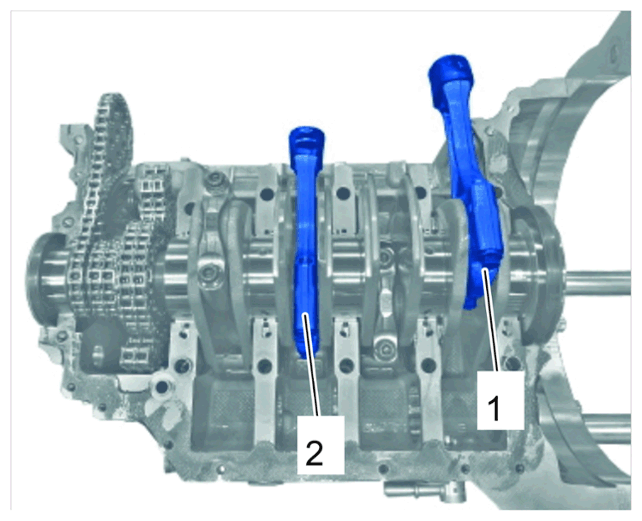

   Connecting rods 1 and 2

8. Replace connecting-rod bearing shells during assembly.
   WARNING: Preloaded or pressurized components

   • Risk of eye injuries
   • Risk of bruising
     • → Wear personal protective gear.
     • → Secure components to prevent them from falling off suddenly.

   Procedure for replacing pistons or connecting rods:

9. Insert connecting rod with piston in special tool > 9778 - retaining device  .
   1. 9.1 Carefully remove piston-pin circlips with a small screwdriver.
   2. 9.2 Press out piston pin and set aside immediately with the relevant piston.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

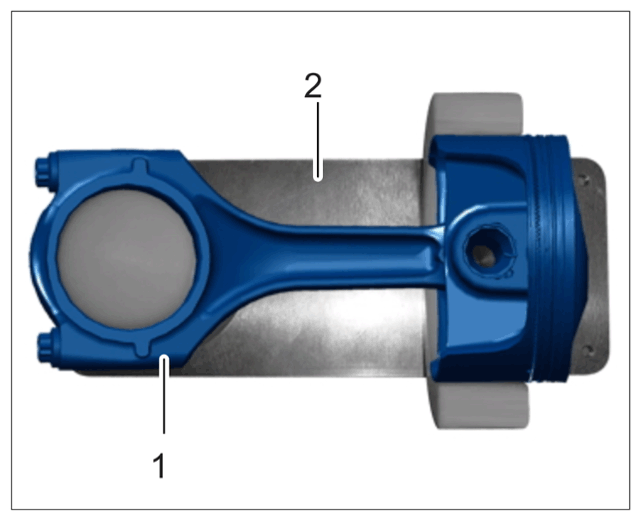

   Piston/connecting rod in retaining device 9778

   1. Connecting rod with piston
   2. Retaining device
