Pre-Assembly Of Pistons And Connecting Rods
Information
- Ensure even weight distribution when installing new pistons or connecting rods.
- Only one weight group is permitted per engine.
Component overview

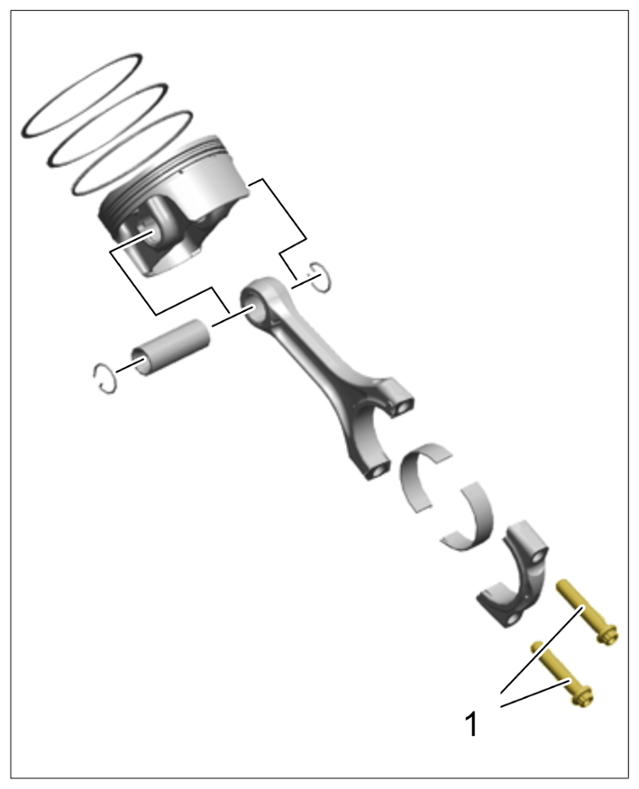

Connecting rod/piston
- Connecting rod bolts, M10 x 1.25 x 51
Tools:
Tool 9778
- > 9778 - Retaining device
- Inserts that can be used for the relevant pistons: 9778
Information
- The parting surface between the connecting rod and connecting rod cap is broken during the manufacturing process.
- Assign connecting rod cap to the relevant connecting rod immediately after removal.
- Also check the four-digit matching number.
- Replace connecting rod bolts.
- Replace connecting rod bearings.
- Allocate connecting-rod bearings based on the marking on the crankshaft.
- 1.1 Read off the bearing shell color from the series of letters. The con-rod marking -3-
indicates the con-rod journal. Fit in the specified sequence -3, 1, 4, 2-
.
The color assignment -4- is shown above the relevant connecting rod number!

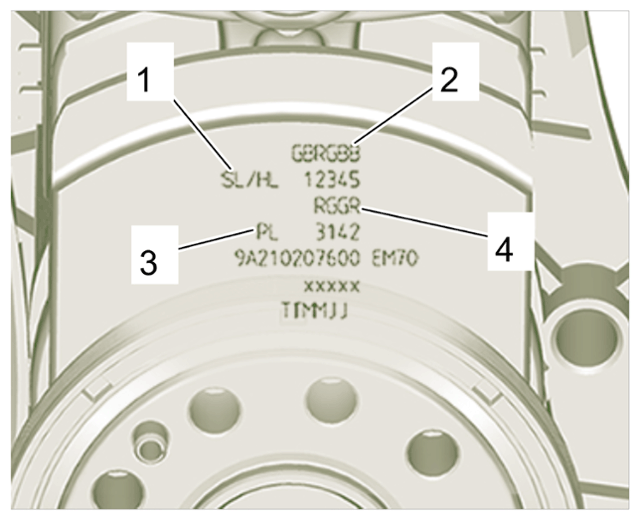

Marking for bearing shell allocation on the crankshaft
- B Blue bearing shells ("thick")
- G Yellow bearing shells ("medium")
- R Red bearing shells ("thin")
- Main bearing designation: SL = support bearing (1), HL = main bearing (2-5), sequence 1-5, starting at the belt side
- Color assignment
- PL = connecting-rod bearing, sequence according to cylinder (3 -1- 4-2)
- Color assignment
- 1.2 Fit new con-rod bearing shells in the connecting rod cap and connecting rod and grease with Optimol Optipit grease (Part No. 000.043.204.17).

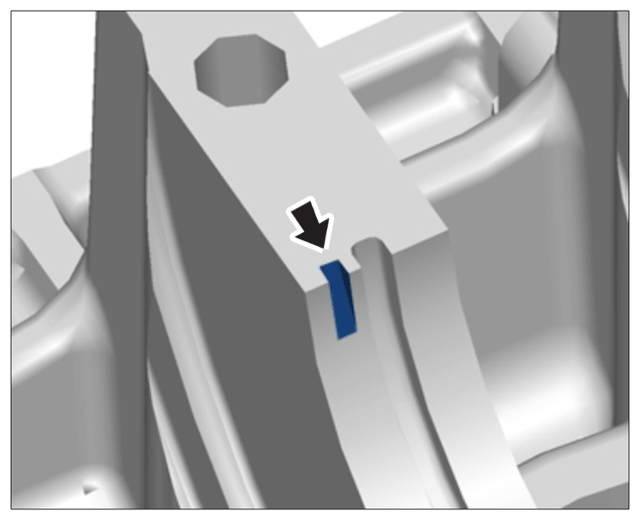

- 1.3 Check that the new con-rod bearing shells are seated correctly (check retaining lugs) -arrow-
.
Retaining lugs for connecting rod bearings
- 1.4 Secure connecting rod cap with relevant connecting rod and new screws by hand.
- 1.1 Read off the bearing shell color from the series of letters. The con-rod marking -3-
indicates the con-rod journal. Fit in the specified sequence -3, 1, 4, 2-
.
- Fit pistons and connecting rods for cylinders 3-4 (the positions of the above-mentioned markings also apply for the pistons and connecting rods for cylinders 1-2).

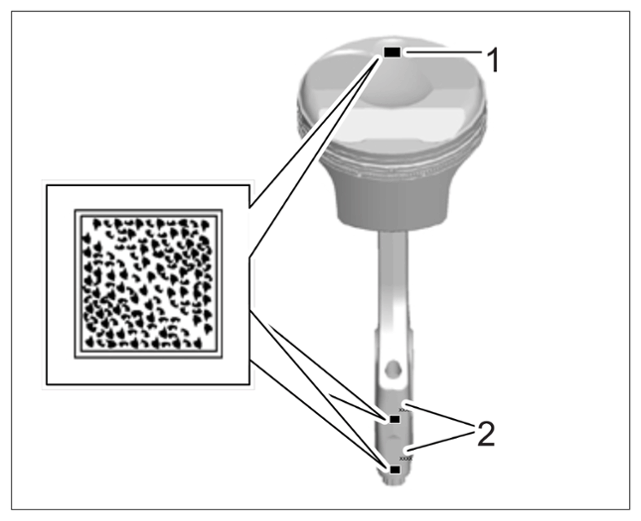

- 2.1 The matching number -2- and data matrix code -inset- on the correctly installed connecting rod must be facing the exhaust side!
- 2.2 Marking points on connecting rod and connecting rod cap must be on the same side.
- 2.3 In contrast, the data matrix code -1- on the piston must be facing the intake side!
- 2.4 The pistons for cylinders 1-2 are pre-fitted without connecting rods.
Matching number on connecting rod
- Insert connecting rod with piston -1-
or only the piston into the > 9778 - retaining device
.
- 3.1 Use a suitable piston receiving element.

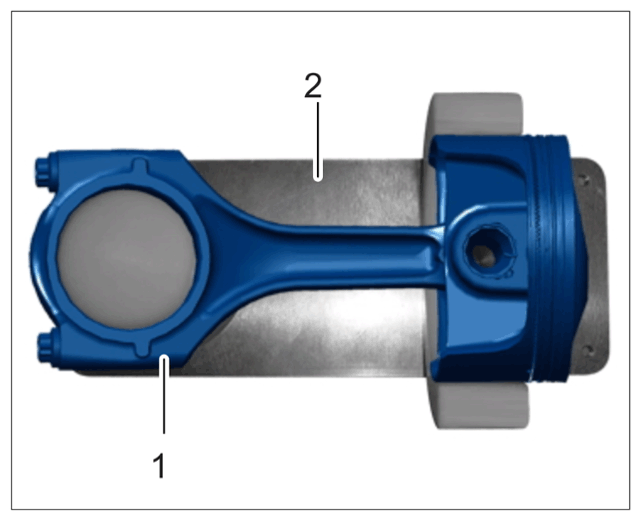

Piston/connecting rod in retaining device 9778
WARNING: Preloaded or pressurized components- Risk of eye injuries
- Risk of bruising
- → Wear personal protective gear.
- → Secure components to prevent them from falling off suddenly.
- First, fit the piston-pin circlip, which must be facing the flywheel side later.
- 4.1 Fit the circlip on the side of the piston that does not have an assembly groove for the assembly tool.
- 4.2 Fit circlip for piston 1 -1- facing the flywheel side and circlip for piston 2 facing the belt side. Use a small screwdriver to do this.
- 4.3 Press the circlip in with your thumbs and guide it to its final position with the screwdriver.

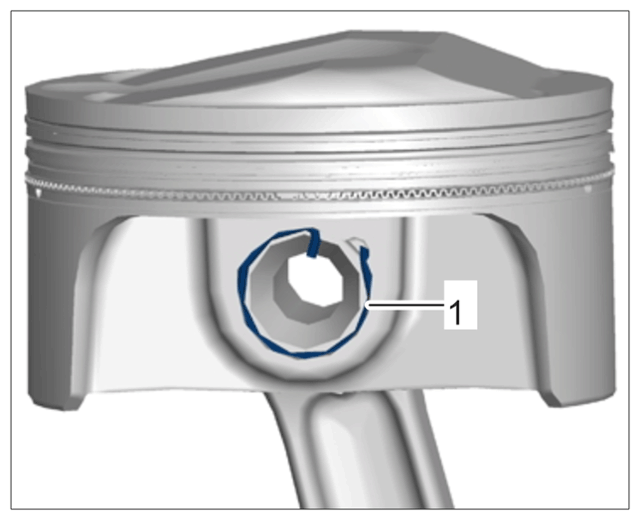

View of circlip facing flywheel side - hook at 12 o'clock position (engine vertical)
Pistons and connecting rods for cylinders 3-4:
- Same procedure as for the circlips for pistons 1 and 2, i.e. fit the circlips inside the engine. Use the relevant assembly tool (9776, 9776/2 or 9776/3) for installation.
- 5.1 Coat piston pin with new engine oil and press it into the relevant piston/connecting rod assembly.

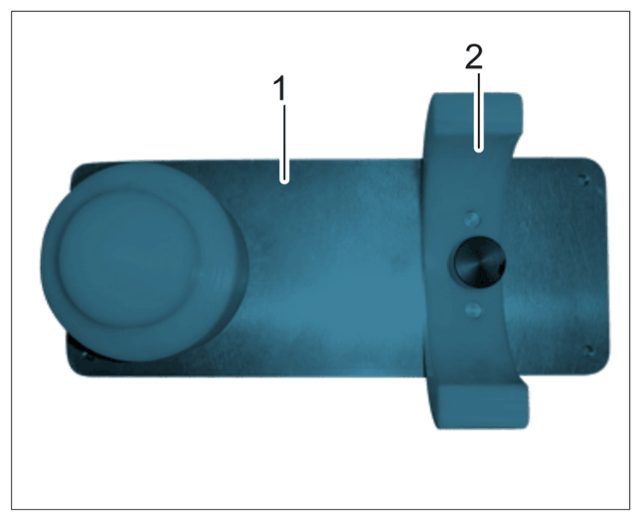

- 5.2 Turn the groove for the small hook on the tool -2-
towards the observer.

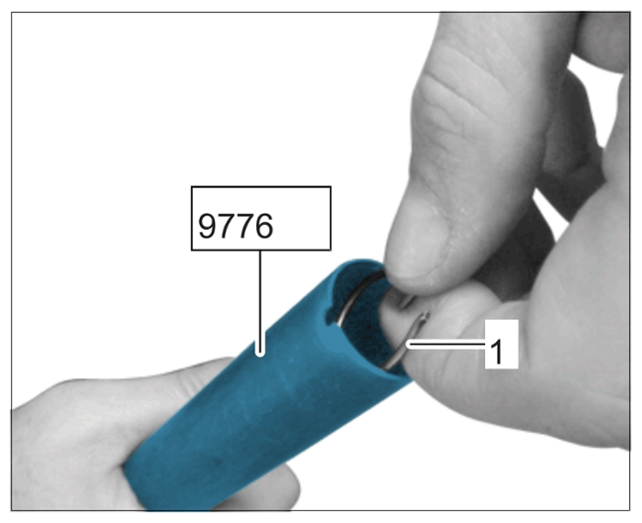

Example of pressing piston-pin circlip into tool 9776

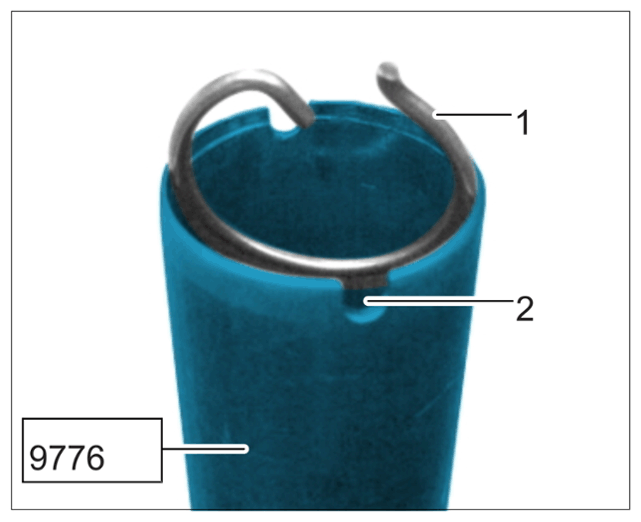

- 5.3 Slide a new circlip -1- into the assembly tool and press the edges together.

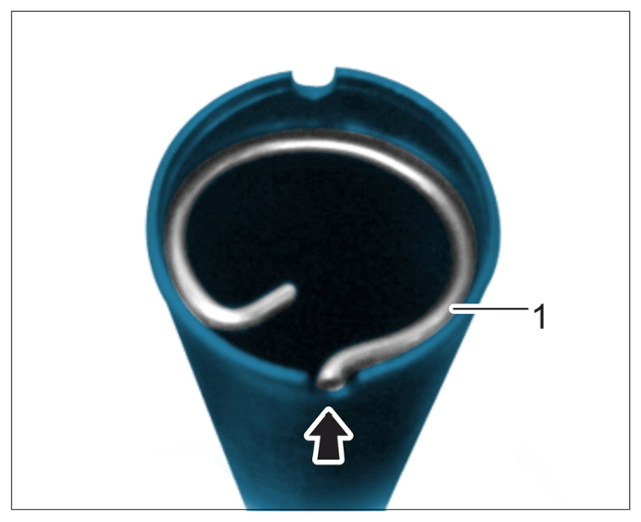

- 5.4 Position small hook facing the groove -arrow-
.
Small hook facing groove

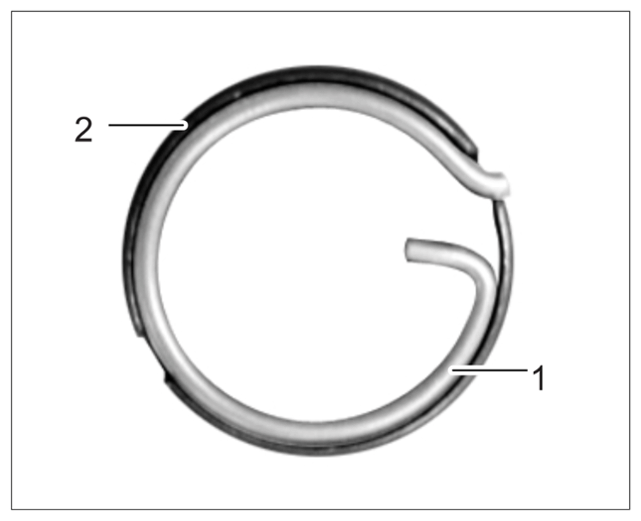

- 5.5 Turn the circlip -1-
as required.
Turning piston-pin circlip in tool
- 5.6 Pull back and hold push rod in tool. Place the pipe -1- on a hard surface. Slowly guide the push rod down and press the circlip into installation position. You should hear a distinct click.
Pressing circlip into assembly position
- >9776 - Assembly tool

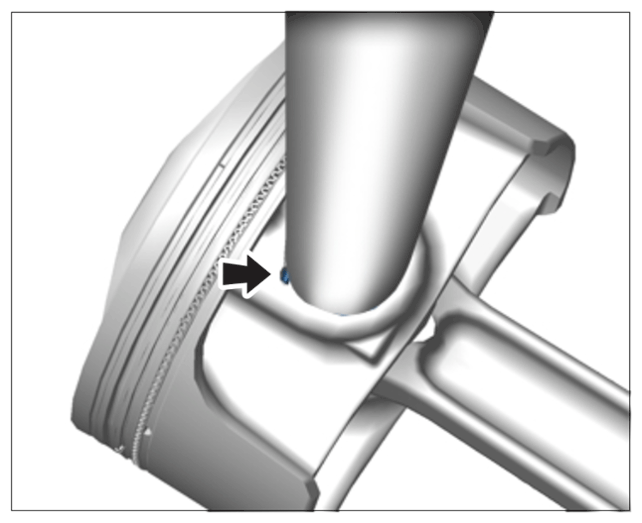

must be positioned on the piston in such a way that the small hook is lying in the half-moon-shaped bore -arrow-
.
Tool 9776 at assembly groove on piston
View of piston 3 on the circlip -1- in the tool.
Circlip position viewed from the piston (towards belt side)

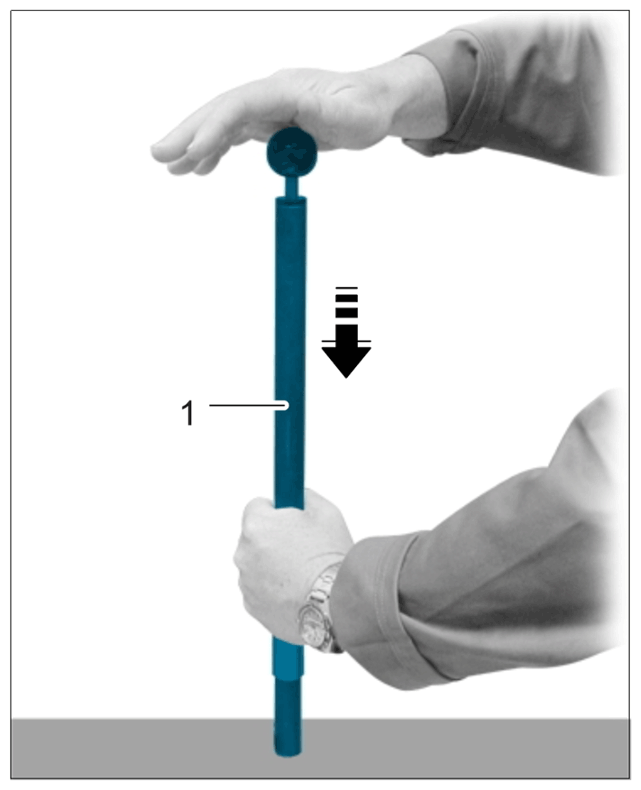

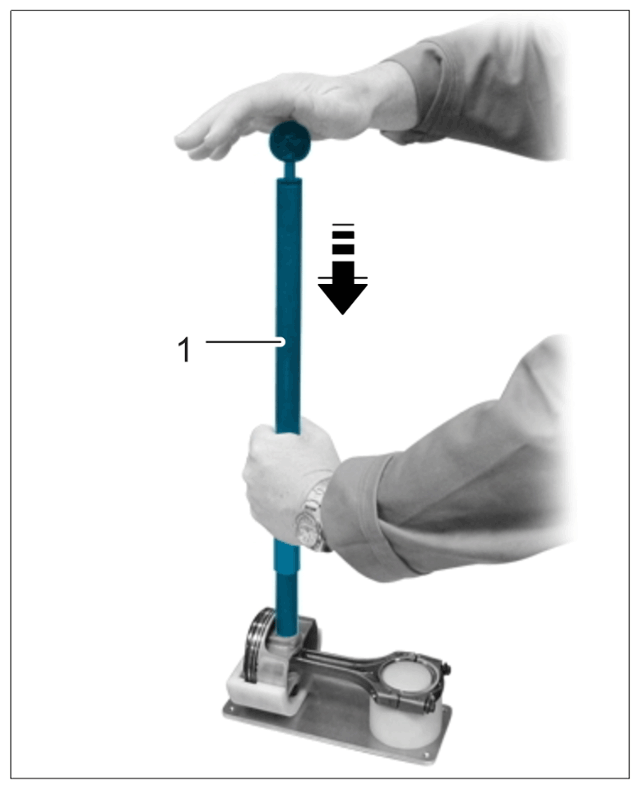

- 6.1 Hold on firmly to the tube of the tool -1- and tap the push rod slightly towards the piston with the ball of your hand -arrow- . The circlip will lock with a clearly audible click.
Fitting circlip on piston in retaining device
- Remove piston and connecting rod from the > 9778 - retaining device .
- If piston rings will be replaced on the re-installed pistons, these can be removed and fitted by hand.IMPORTANT: Check installation position and avoid breakage!
