Removing Pressure Sensor
WARNING:
Refrigerant
- Danger of freezing
→ Avoid contact with refrigerant.
→ Wear personal protective gear.
→ Observe the safety regulations for working on air-conditioned vehicles and handling refrigerant.
→ Observe the safety regulations for extraction and filling systems.
→ Observe the instructions for repairing air-conditioning systems and storing spare parts.

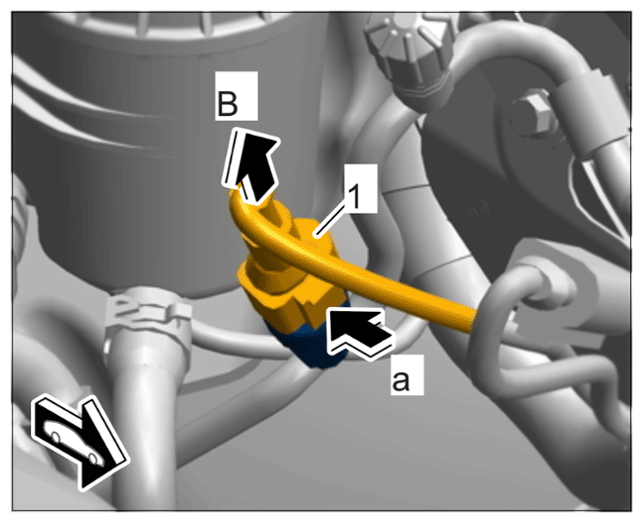

- Release electric plug connection -1-
(-a-
) and disconnect it from the pressure sensor -B-
.
Disconnecting connector for pressure sensor
Information
Support the refrigerant line with your hand close to the pressure sensor when screwing the pressure sensor on and off.
- Unscrew pressure sensor -2- at the hexagon using an open-ended wrench and remove it.
Removing pressure sensor
