Installing Pressure Sensor

1. Replace O-ring on the pressure sensor and coat it with refrigerant oil.

   Information

   Support the refrigerant line with your hand close to the pressure sensor when screwing the pressure sensor on and off.

2. Screw pressure sensor -2-  onto the thread by hand and then tighten to the prescribed tightening torque > Tightening torque 5 Nm (3.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

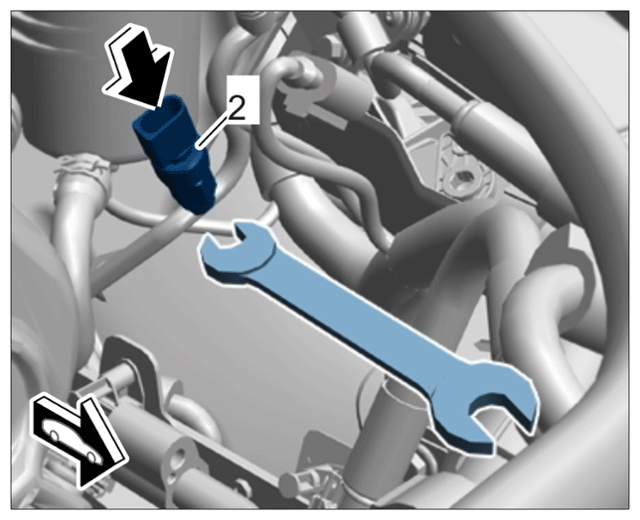

   Installing pressure sensor

3. Plug in electric plug connection -1-  on the pressure sensor until it engages securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

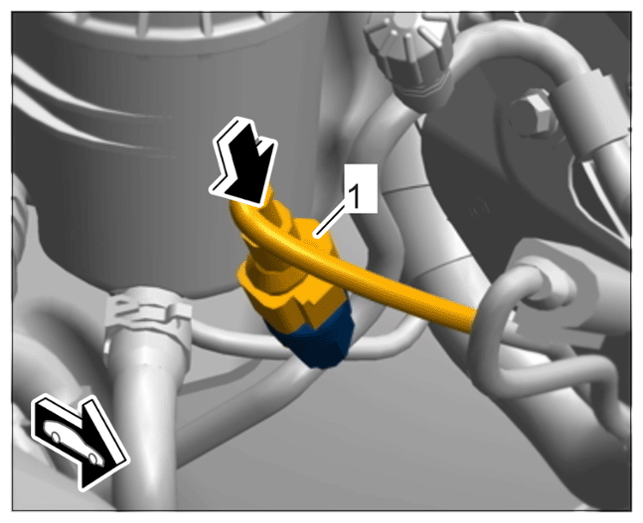

Connecting connector for pressure sensor
