Removing Temperature Sensor In Heating/Fresh-Air Unit On Driver'S Side

  1. Remove temperature sensor in heating/fresh-air unit on driver's side -2-  .
    1. 1.1 Release and unplug electric plug connection -5-  .
    2. 1.2 Release temperature sensor in heating/fresh-air unit on driver's side -2-  by turning it and remove it.

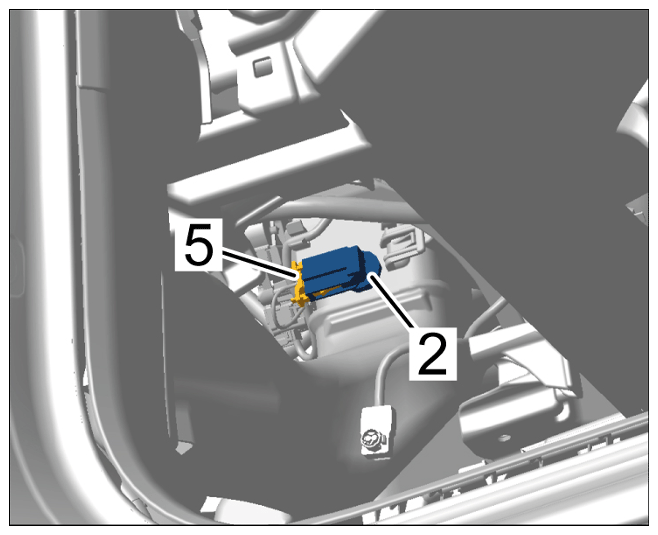

      G15875070Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing temperature sensor in heating/fresh-air unit on driver's side
