Subsequent Work

Subsequent work

1. Install front apron.

   > 631519 REMOVING AND INSTALLING FRONT APRON

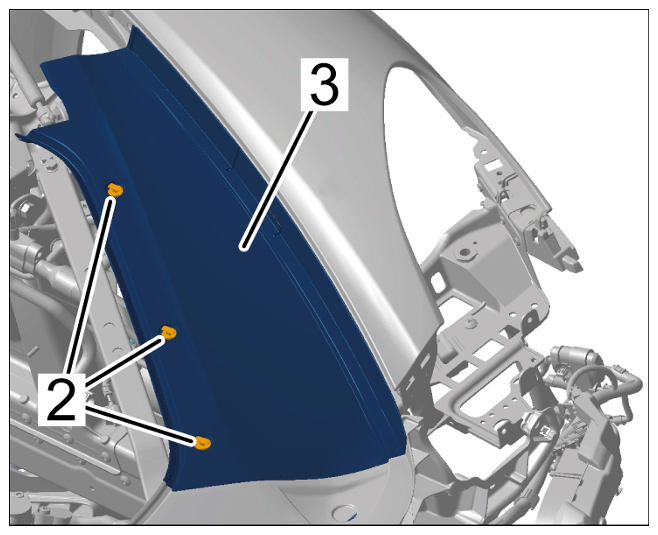

2. Position left engine cover -3-  and secure with clips -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing side engine cover

3. Install the cowl panel cover.

   > WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER

4. Fill in refrigerant.

   > WM, 870317 DRAINING AND FILLING REFRIGERANT R134A , WM, 870317 DRAINING AND FILLING REFRIGERANT R1234YF
