Preliminary Work

  1. Drain refrigerant.

    > WM, 870317 DRAINING AND FILLING REFRIGERANT R134A , WM, 870317 DRAINING AND FILLING REFRIGERANT R1234YF

  2. Remove cowl panel cover.

    > WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER

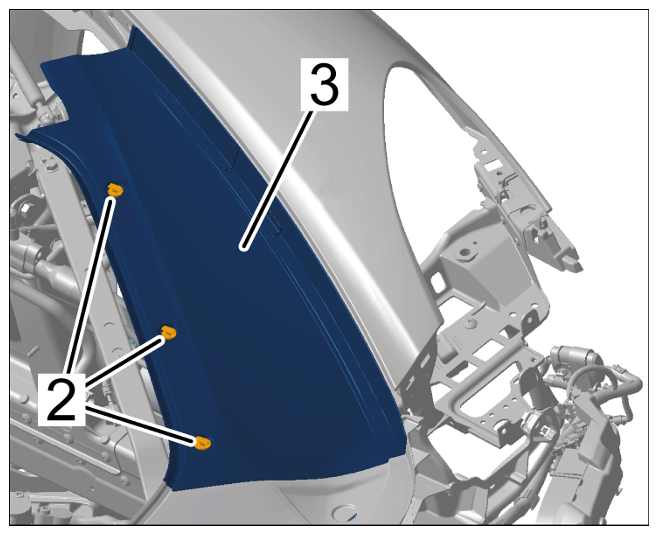

  3. Remove clips -2-  and remove engine cover at the left -3-  .
    G15875042Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing side engine cover

  4. Remove front apron.

    > 631519 REMOVING AND INSTALLING FRONT APRON
