| Screw securing refrigerant line to condenser |
Item 2 |
Tightening torque |
12 Nm (8.85 ftlb.) |
|
|

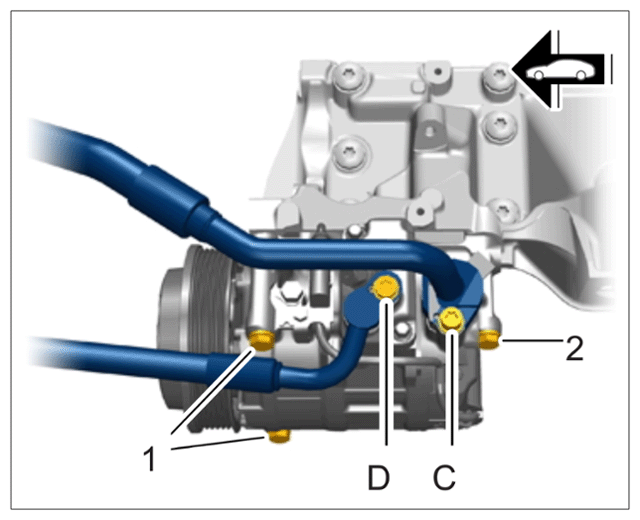

| Screw securing air-conditioning compressor to engine |
-1- and -2- |
Tightening torque |
20 Nm (15 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Refrigerant line to air-conditioning compressor |
