Technical Values

Location	Des...	Type	Basic val...
Screw securing air-conditioning compressor to engine	-1- and -2-	Tightening torque	20 Nm (15 ftlb.)

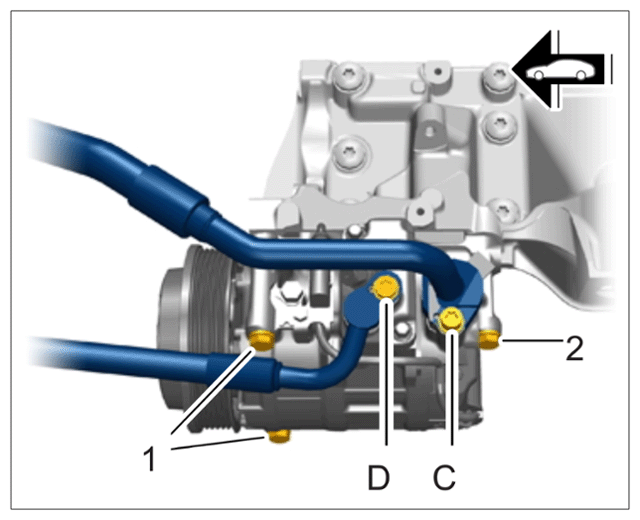

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Refrigerant line to air-conditioning compressor
Screw securing refrigerant line to air-conditioning compressor	-C- and - D-	Tightening torque	20 Nm (15 ftlb.)

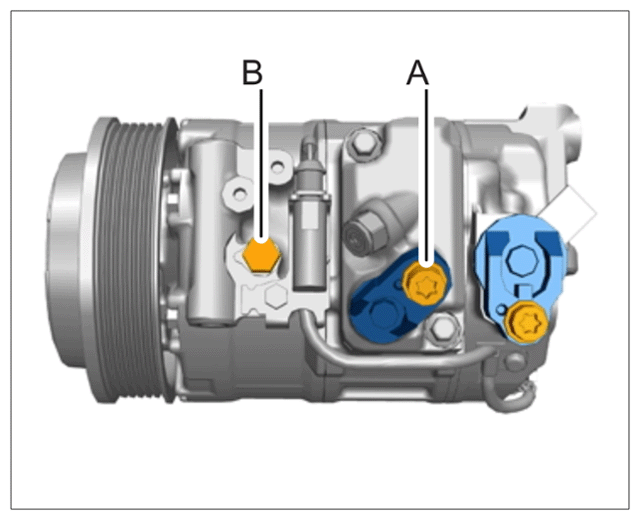

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tightening torques
Oil filler screw to air-conditioning compressor	B	Tightening torque	15 Nm (11 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cap and oil filler screw
Screw securing tensioning roller to holder	Drive belt on air-conditioning compressor	Tightening torque	25 Nm (19 ftlb.)
