Removing Air Quality Sensor

  1. Release the sensor by turning it anti-clockwise -arrow A-  and remove it from the holder.

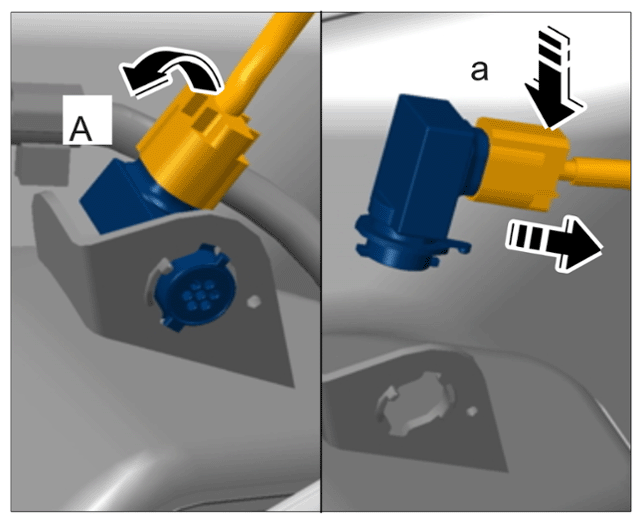

    G15875014Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing air quality sensor

  2. Release electric connector -arrow a-  and remove the sensor.
