Installing Air Quality Sensor

  1. Push connector onto the air quality sensor until it engages securely.

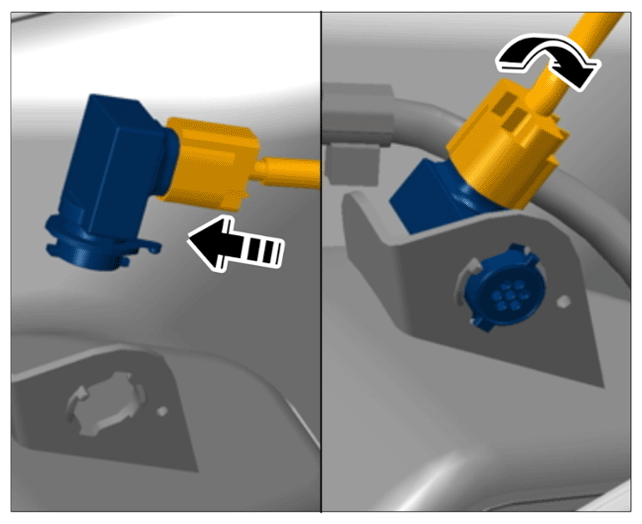

    G15875015Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing air quality sensor

  2. Push the sensor into the holder and turn it clockwise to lock it.
