Removing Servo Motor For Right Foot Bypass

  1. Remove servo motor for right foot bypass -3-  .

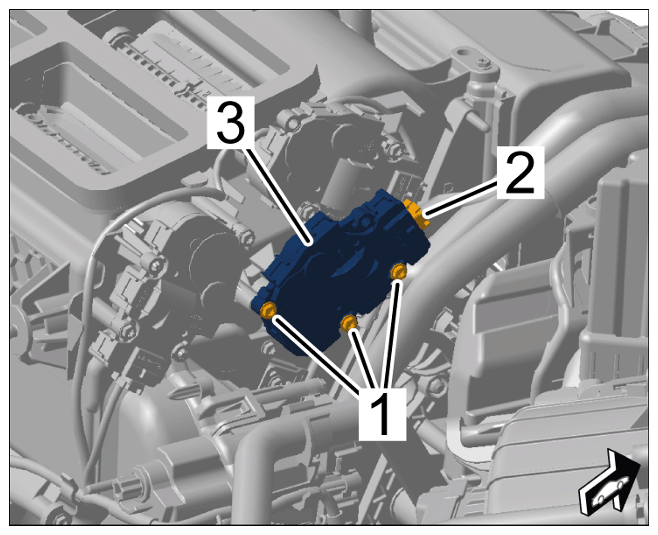

    G15874970Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing servo motor for right foot bypass

    1. 1.1 Unscrew and remove screws -1-  .
    2. 1.2 Release and unplug electric plug connection -2-  .
    3. 1.3 Remove servo motor for right foot bypass -3-  .
