Removing Servo Motor For Right FOOTWELL Outlet Vent

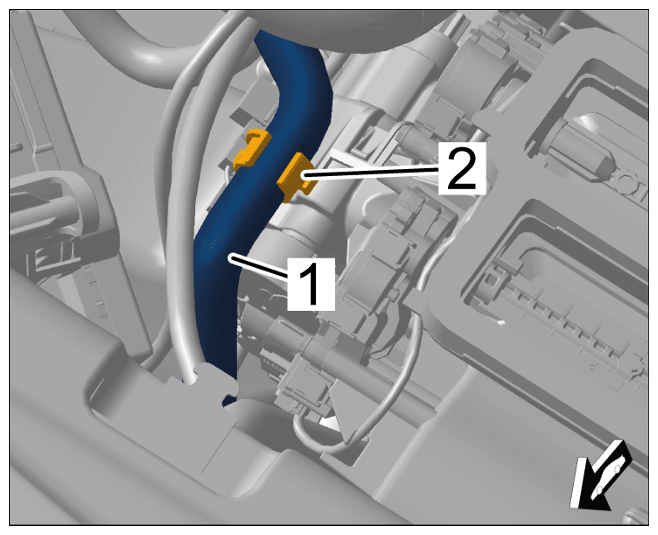

  1. Disengage hose -1-  from the bracket -2-  .
    G15874998Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disengaging hose from bracket

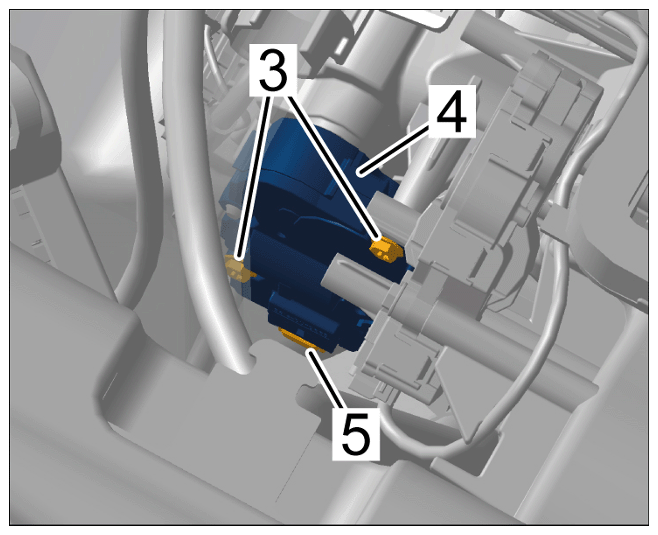

  2. Remove servo motor for right footwell outlet vent -4-  .
    G15874999Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing servo motor for right footwell outlet vent

    1. 2.1 Unscrew and remove screws -3-  .
    2. 2.2 Pull out servo motor for right footwell outlet vent -4-  until the electric plug connection -5-  is accessible.
    3. 2.3 Release and unplug electric plug connection -5-  .
