Removing Servo Motor For Rear Right Temperature Mixing Flap (4-Zone Air Conditioning)

  1. Remove servo motor for rear right temperature mixing flap -1-  .

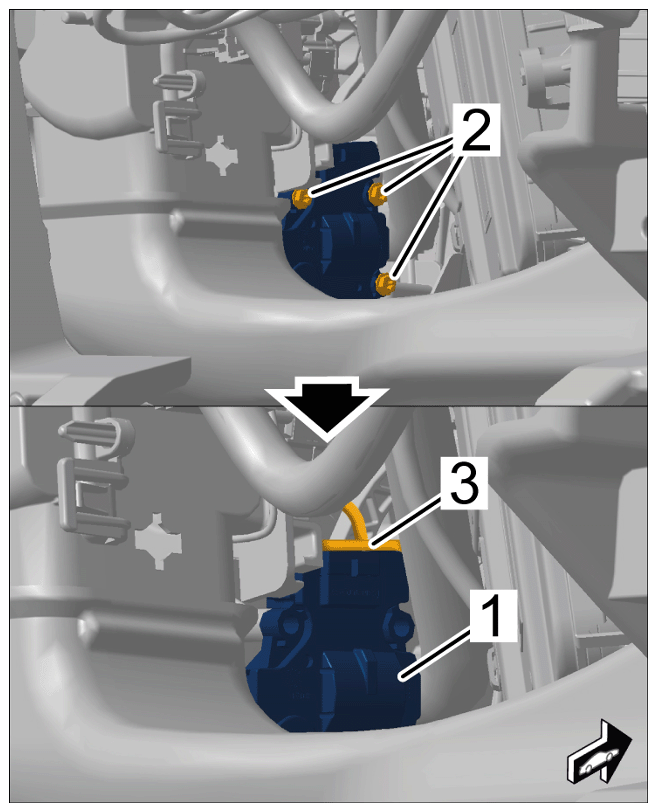

    G15874958Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screws

    1. 1.1 Unscrew and remove screws -2-  .
    2. 1.2 Release and disconnect electric plug connection -3-  .
    3. 1.3 Remove servo motor for rear right temperature mixing flap -1-  .
