Removing Servo Motor For Rear Left Temperature Mixing Flap (4-Zone Air Conditioning)

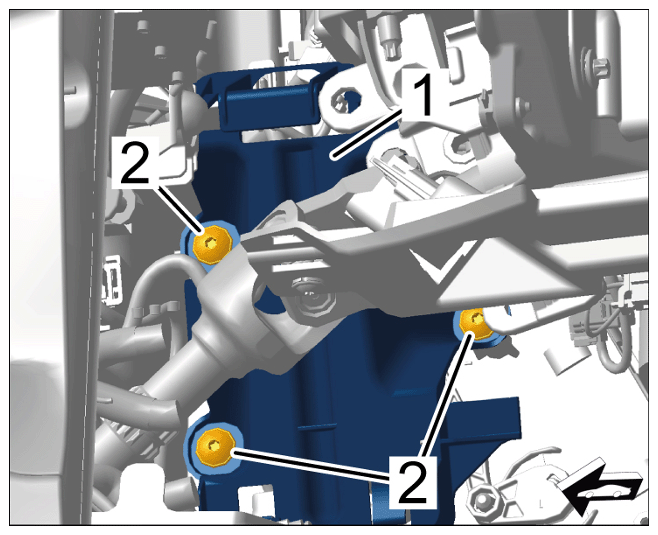

  1. Unscrew screws -2-  and remove holder -1-  .
    G15874983Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screws

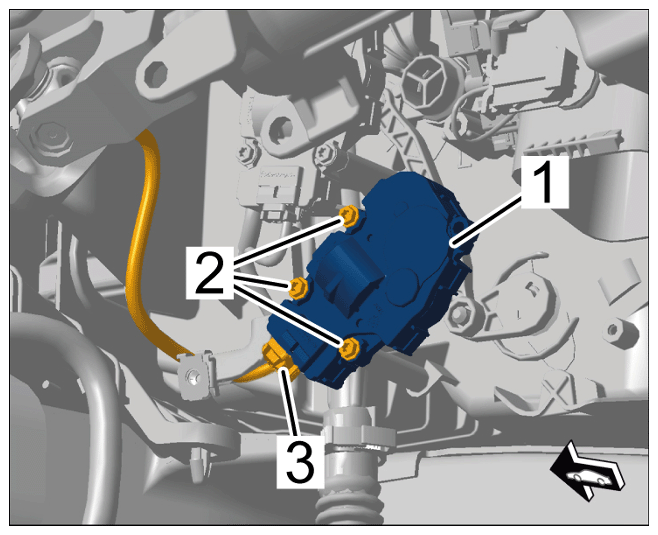

  2. Remove servo motor for rear left temperature mixing flap -1-  .
    1. 2.1 Unscrew and remove screws -2-  .
    2. 2.2 Release and unplug electric plug connection -3-  .
    3. 2.3 Remove servo motor for rear left temperature mixing flap -1-  .
      G15874984Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Unscrewing screws
