Removing Servo Motor For Fresh Air/Ram Air Flap

  1. Unscrew and remove screws -1-  .
    G15875002Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screws

  2. Remove servo motor for fresh air/ram air flap -3-  .
    1. 2.1 Release and unplug electric plug connection -2-  .
    2. 2.2 Remove servo motor for fresh air/ram air flap -3-  .

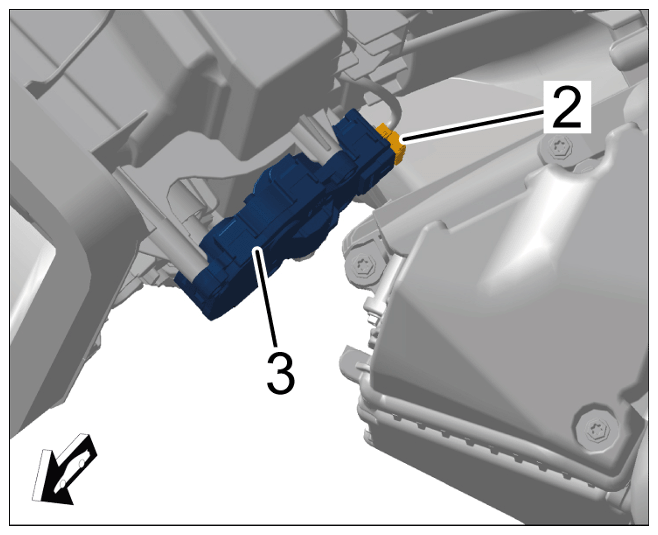

      G15875003Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing servo motor for fresh air/ram air flap
