Removing Muffler

CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

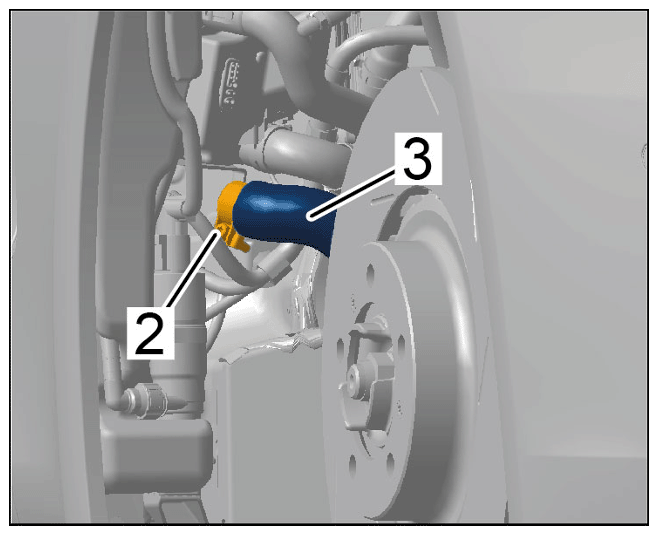

  1. Loosen clamp -2-  and pull off flexi-pipe -3-  .
    G15874870Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening clamp

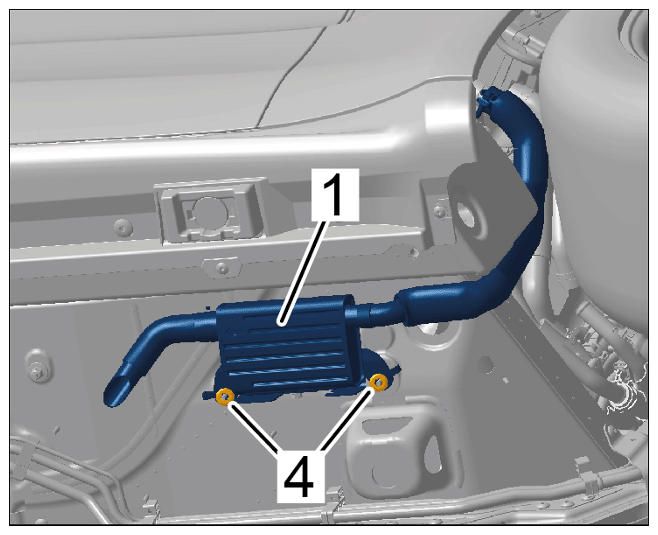

  2. Unscrew nuts -4-  and remove muffler (silencer) -1-  .
    G15874871Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing muffler
