Removing Fuel Pump For Auxiliary Heating
WARNING:
Toxic substances
- Danger of poisoning or suffocation
- Danger of burns to the eyes and skin
→ Ventilate the work area well.
→ Never ingest or inhale.
→ Read specific information on the Hazard Sheet.
→ Wear personal protective gear.
→ Do not smoke, eat or drink in the work area.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapours.
→ Attach warning sign in a clearly visible position.
→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
→ Secure collection containers/vessels to prevent them from tipping over.

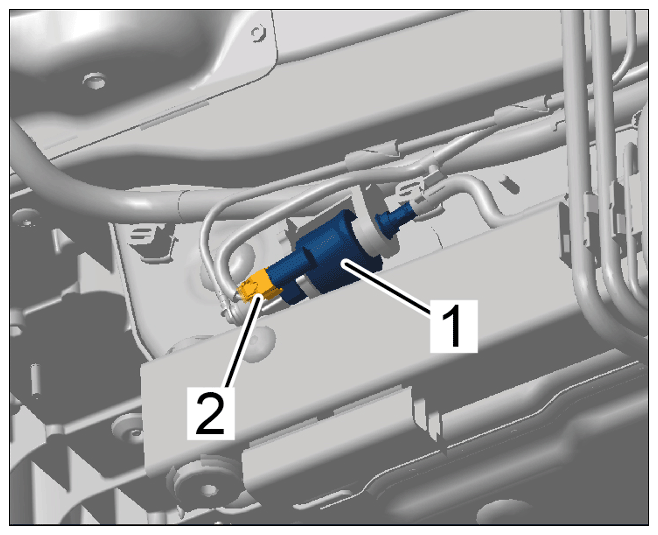

- Release and disconnect electric plug connection -2-
on auxiliary heating fuel pump -1-
.
Releasing and pulling off electric plug connection

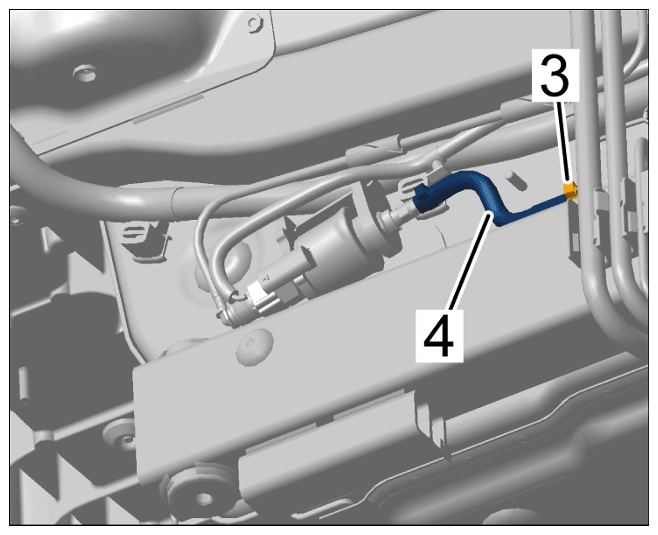

- Open clamp -3-
using a suitable tool and pull fuel hose -4-
off the fuel line.
Opening clamp and pulling off fuel hose

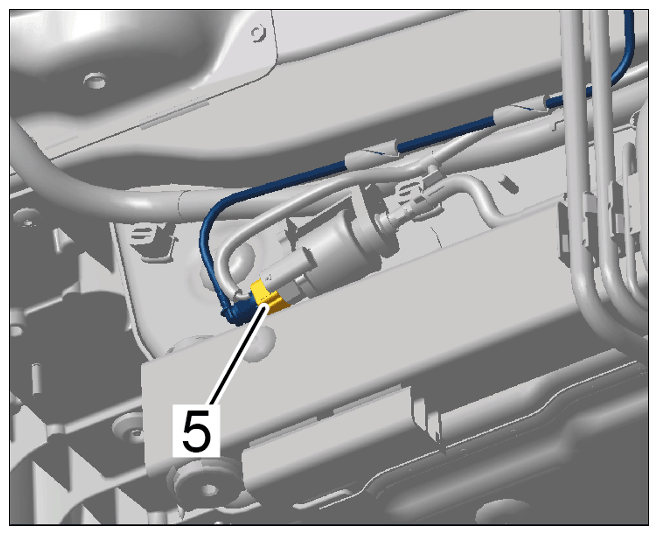

- Disconnect fuel line -5-
at the auxiliary heating fuel pump.
Releasing and disconnecting fuel line

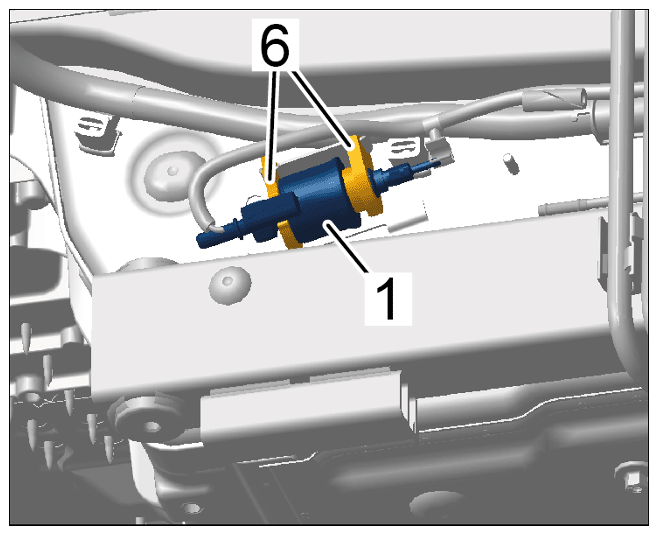

- Detach retaining rubbers -6-
from the holder and remove fuel pump for auxiliary heating -1-
.
Removing fuel pump for auxiliary heating
