Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove heat shield for turbocharger.

    > 261219 REMOVING AND INSTALLING HEAT SHIELD FOR TURBOCHARGER (V8 BITURBO)

  2. Only for cylinder bank 1-4:  Remove temperature sensor for fan.
    1. 2.1 Unclip connector -1-  .
    2. 2.2 Unscrew screw -2-  and remove temperature sensor -3-  .

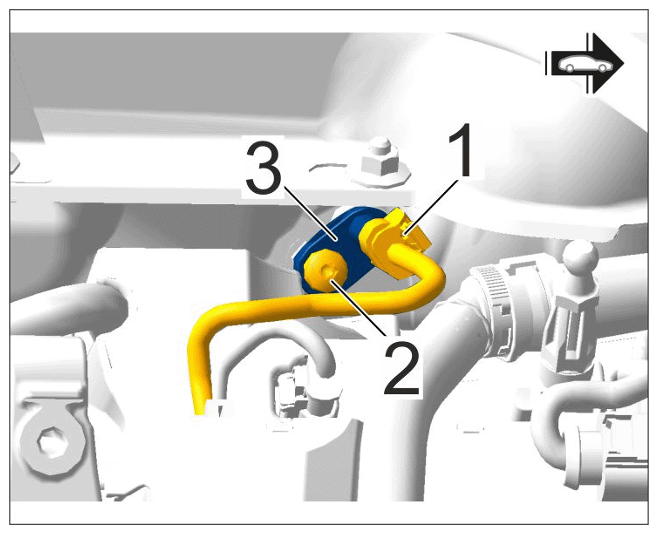

      G15879397Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Temperature sensor for fan
