Electric Air-Conditioning Compressor
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Nut securing protective plate to air-conditioning compressor | Tightening torque | 20 Nm (15 ftlb.) | ||
|

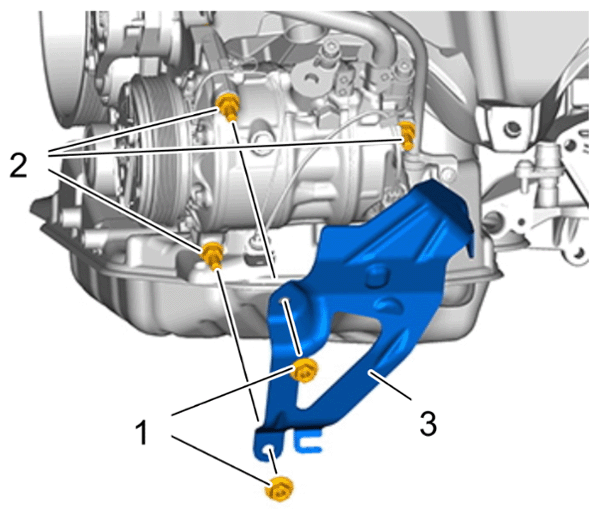

Protective plate on air-conditioning compressor |
||||
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Screw securing air-conditioning compressor to bracket | Tightening torque | 20 Nm (15 ftlb.) | ||
|

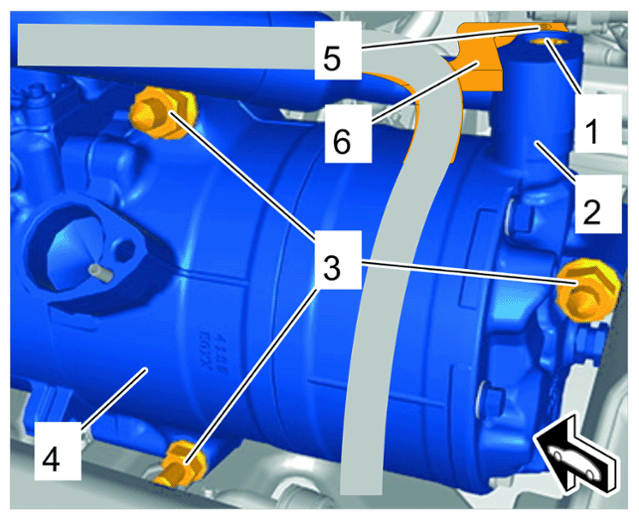

Compressor |
||||
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Screw securing refrigerant line to air-conditioning compressor | Tightening torque | 20 Nm (15 ftlb.) | ||
| Screw securing high-voltage line holder to air-conditioning compressor | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Compressor |
||||
