Technical Values - Group 87 - Air Conditioning: Condenser
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

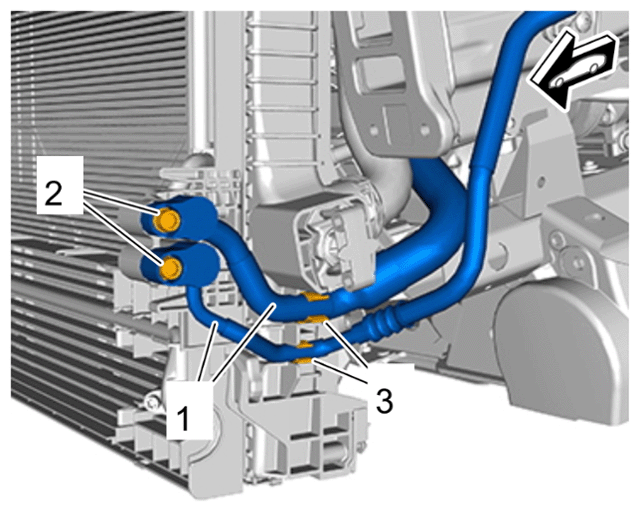

| Screw securing refrigerant line to condenser | Item 2 | Tightening torque | 12 Nm (8.85 ftlb.) | |
|
Refrigerant lines on condenser |
||||
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Screw securing condenser retaining frame to radiator | Tightening torque | 5 Nm (3.7 ftlb.) |
