Removing Side Trim Panel For Rear Luggage Compartment

WARNING: This page is about a different variant/trim than selected.

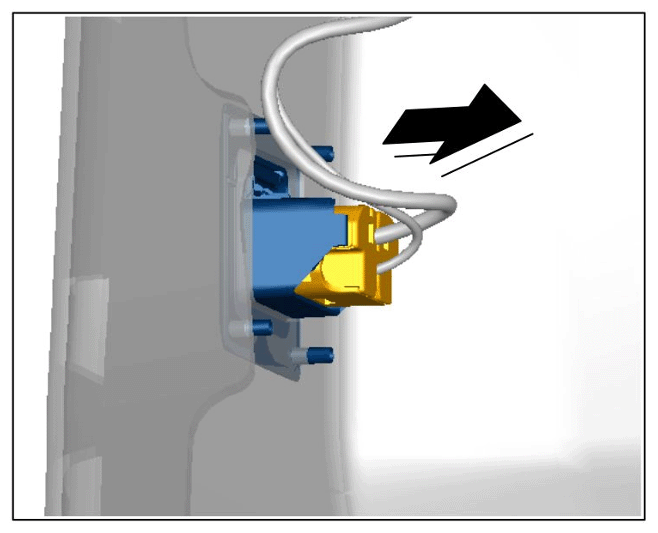

Only for left side trim panel for rear luggage compartment, vehicles with plug socket:
Disconnect electric plug connection for plug socket. -arrow -

> WM, 905819 REMOVING AND INSTALLING PLUG SOCKET

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug socket

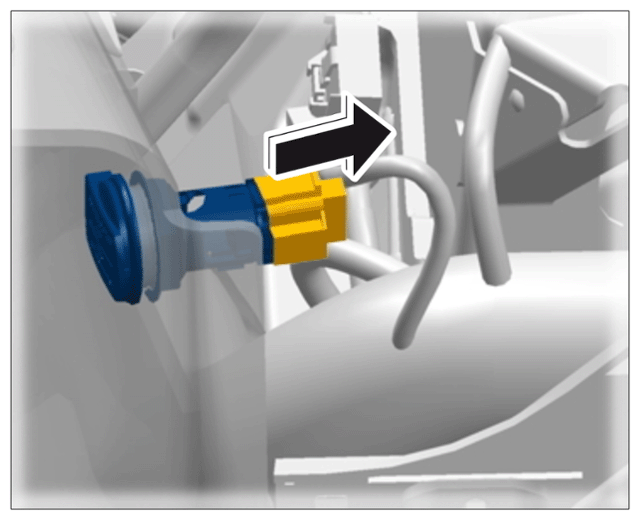

Only for left side trim panel for rear luggage compartment, vehicles with 230 V plug socket:
Disconnect electric plug connection for plug socket. -arrow-

> WM, 905819 REMOVING AND INSTALLING PLUG SOCKET

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

230 V plug socket

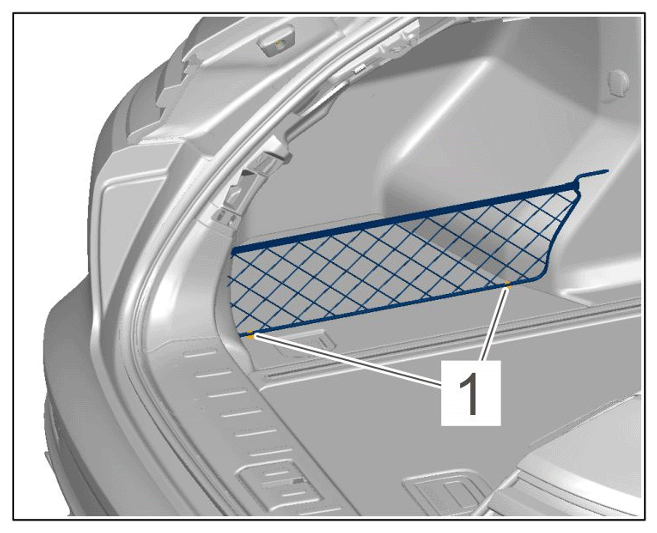

Unclip luggage net on lower side panel -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Luggage net on side panel

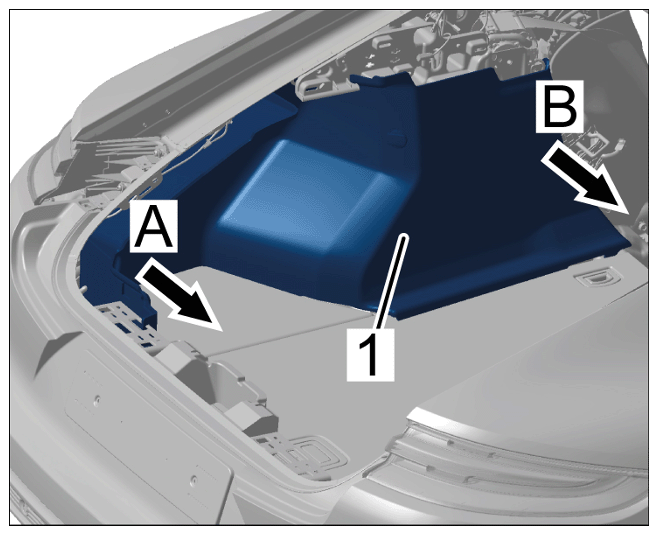

Detach side trim panel for rear luggage compartment -1- from the lock carrier -arrow A- and guide it out of the C-pillar trim panel -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing side trim panel for rear luggage compartment
