Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

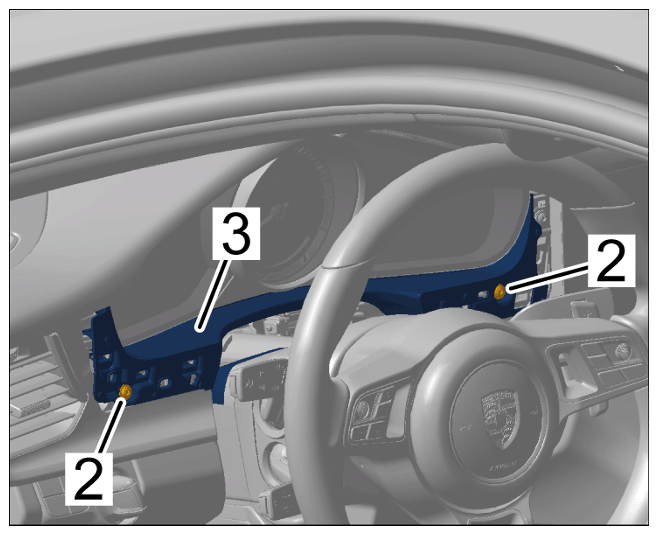

| Screws for instrument cluster trim panel | Item 2 | Tightening torque | 1.5 Nm (1 ftlb.) | ||
|
Screws for instrument cluster trim panel |
|||||

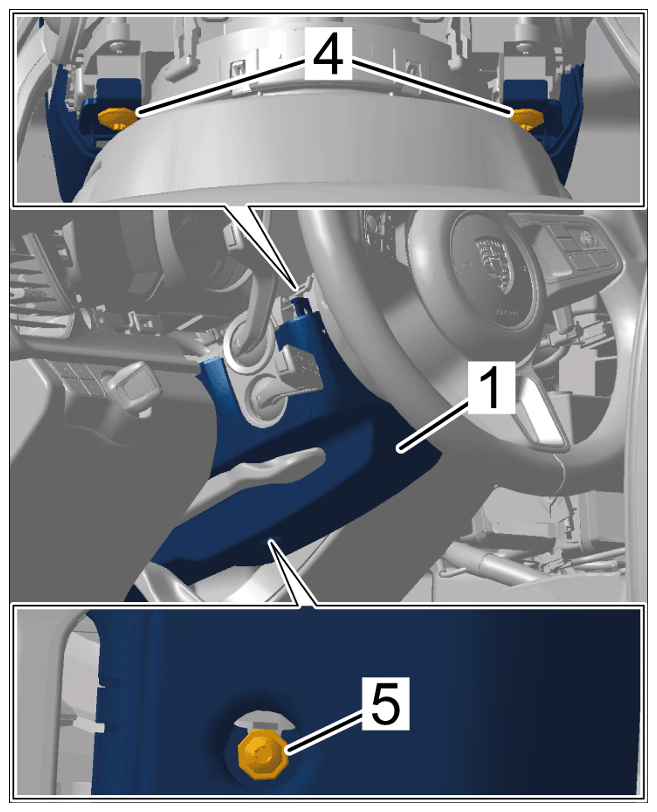

| Screws for steering column casing | Item 4 | Tightening torque | 3 Nm (2 ftlb.) | ||
|
Screws for steering column casing |
|||||
| Screw for steering column casing | Item 5 | Tightening torque | 1.5 Nm (1 ftlb.) | ||
|
Screw for steering column casing |
|||||
